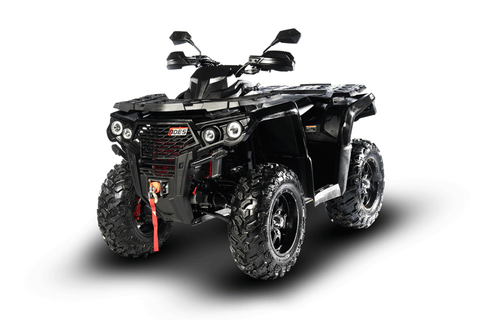

PATHCROSS 800CC-S
| Engine | 850CC | |||||||||||
| Engine Type | V-twin | |||||||||||
| Displacement | 800cc | |||||||||||
| Max. power | 44kw/6500 RPM | |||||||||||
| Max. torque | 73N.m/5000 RPM | |||||||||||
| Vehicle | short wheelbase | |||||||||||
| Dimension | 2274*1253*1400 | |||||||||||
| Net Weight | 380kg | |||||||||||
| Wheel Base | 1348mm | |||||||||||
| Front Tread | 1000mm | |||||||||||
| Rear Tread | 958mm | |||||||||||
| Front Wheel | 26x9-14,steel/alloy rim | |||||||||||
| Rear Wheel | 26x11-14,steel/alloy rim | |||||||||||
| Ground Clearance | 283mm | |||||||||||
| Brake | 4 Disk Brake on Front/Rear Wheels | |||||||||||
| Front Transmission | Front differential with lock | |||||||||||
| Rear Transmission | Rear reducer | |||||||||||
| Front Suspension | Double A-arms | |||||||||||
| Rear Suspension | Trailing Arm | |||||||||||
| Front/Rear Shock | Hydraulic shock (High Performance Gas shock as option) | |||||||||||
| Fuel Tank Capacity | 22.5L | |||||||||||
| Steering | EPS（as option） | |||||||||||
| Certification | EPA,T3A,T3B | |||||||||||
| Standard | Front/Rear Plastic racks, 4 disc brake on front/rear wheels, steel rims with 26 inch tire (J-level), CV-tech Clutch, LED light, aluminum foot teeth pedal, front standard bumper, rear passanger seatrest + handgrips (long wheel base available) |
|||||||||||
| single seat | Double seats | |||||||||||
