1 1 21040105202 Right crankcase $369.37
2 2 21040105302 Left crankcase $361.81
3 3 21040105401 Center pin 8x12 $0.70
4 4 21040105502 Drive pin 5x11 $0.70
5 5 21040105601 Plug screw npt 1/2 $2.19
6 6 90101120650 Insert pin 10*1.5-17K $3.41
7 7 21040105701 Plug screw npt 1/8 $0.70
8 8 21040105801 Plug screw npt 1/4 $1.02
9 9 21040105901 Location pin $2.89
10 10 21040106001 Plain bearing $18.73
11 11 21040106101 Plain bearing $19.60
12 12 04112080021 Hex Nut 8 $0.70
13 13 21040113901 Rotary seal $13.18
14 14 21040106301 Needle pin 6x10 $0.70
15 15 21040106401 Gasket $12.27
16 16 01214080651 Hex Flange Bolt 8x65 $1.33
17 17 01224060351 Hex Flange Bolt 6x35 $0.70
18 18 01214060751 Hex Flange Bolt 6x75 $0.74
19-1 19-1 21040106501 Valve plate $13.01
19-2 19-2 21040106502 Valve plate $2.10
20 20 21040106601 Reed valve stop $3.50
21 21 01224060161 Hex Flange Bolt 6x16 $0.70
22 22 21040116001 Dowel pin 10x16 $0.70
23 23 21040106801 Stud 8x62 $1.30
24 24 21040100501 Stud 8x45 $1.07
25 25 21040106901 Gasket $8.02
26 26 21040107001 Pot cover assembly $93.29
27-1 27-1 21040107101 Bearing sleeve $23.10
27-2 27-2 21040107102 Bearing sleeve $14.82
28 28 21040107301 Oil seal 34x52x8 $12.95
29 29 21030112801 O RING? 7x2 $0.70
30 30 21040107201 Hose outlet npt1/4 $3.85
31 31 01224060351 Hex Flange Bolt 6x35 $0.70
32 32 21040107401 Sealing ring §¶8 $0.70
33 33 01224080161 Hex Flange Bolt 8x16 $0.70
34 34 21030112901 Oil union joint $2.45
Description

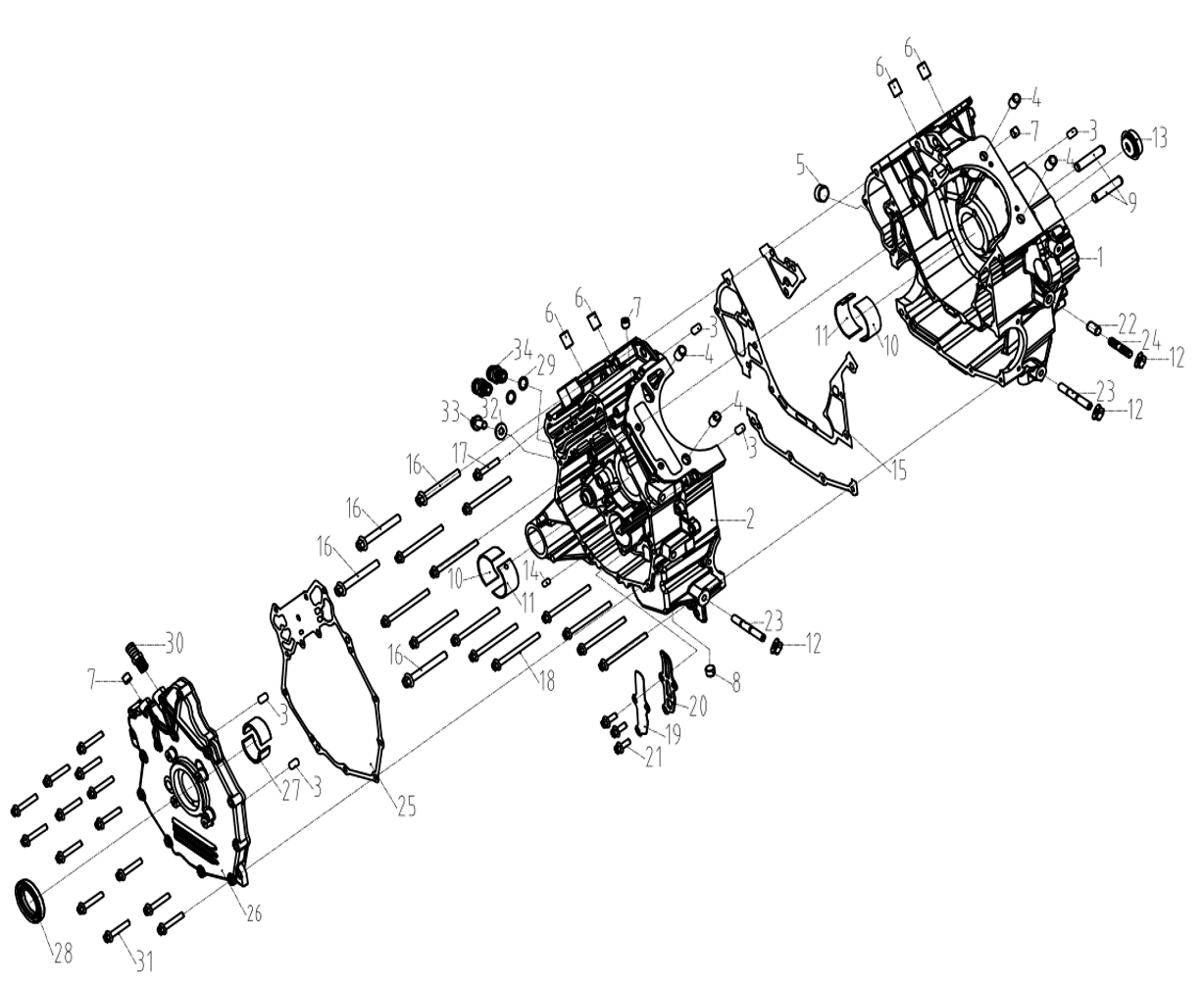

Desertcross 800cc-3 CRANKCASE
