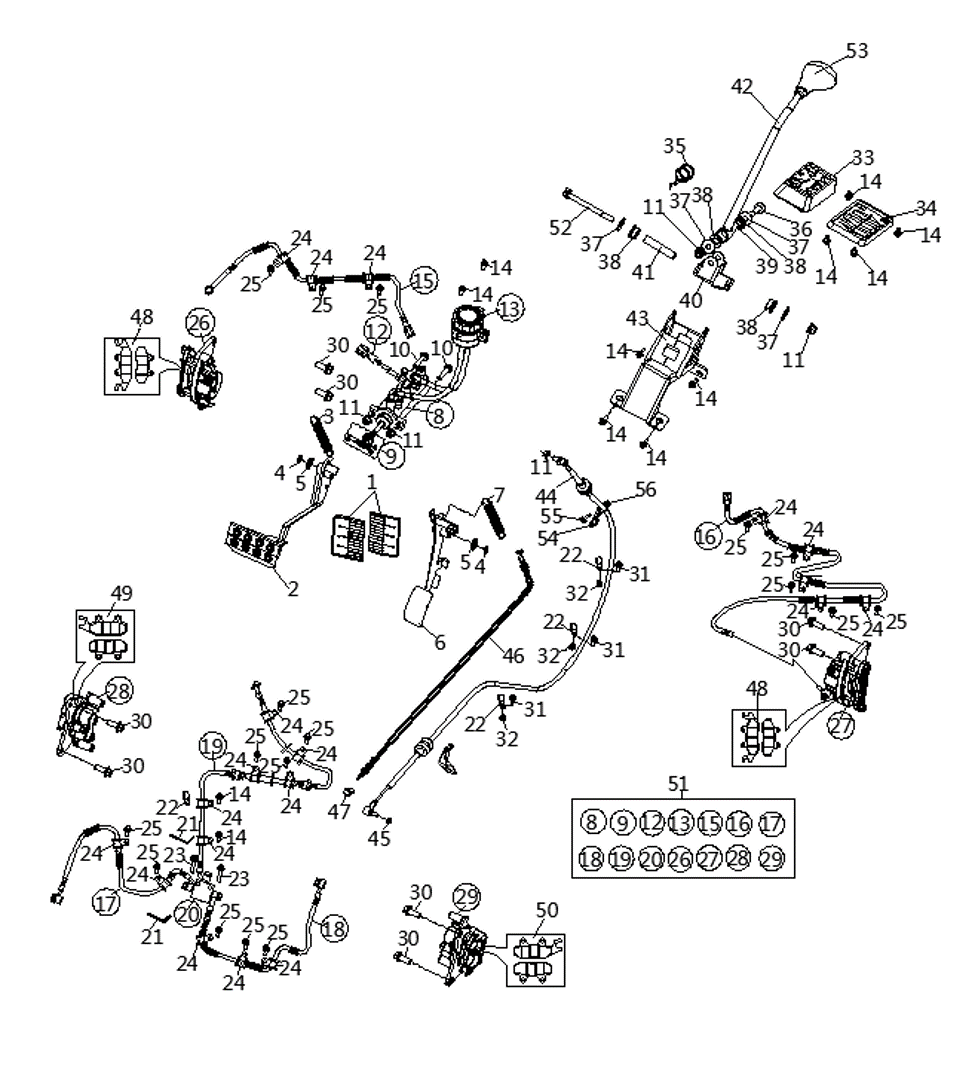

Desertcross 1000cc-3 Braking system

#Ref Part Price Qty

1 1 14606100000 Mud shield $1.44

2 2 14606080000 Brake Pedal $7.95

3 3 10706030020 Spring Brake Pedal $0.70

4 4 07031120004 Elastic Snap Ring 12 $0.70

5 5 06219152805 Washer 15x28x2 $0.70

6 6 14611010100 Throttle Pedal $8.59

7 7 10906100020 Throttle Return Spring $0.70

8 8 15106010400 Mater cyliner, Footbrake assembly $31.47

9 9 15106010470 Brake rod of master cyliner $2.07

10 10 01224080355 Hex Flange Bolt 8x35 $0.70

11 11 04612080025 Heagon flange locking nut 8 $0.70

12 12 10909050010 Brake Switch (With Knot£© $4.14

13 13 15106010440 Oil cup, brake system $5.03

14 14 01224060165 Hex Flange Bolt 6x16 $0.70

15 15 14606010160 Front left hose, brake assy $9.01

16 16 14606010170 Front right hose, brake assy $12.01

17 17 14606010260 Rear left hose, brake assy $4.82

18 18 14606010250 Rear right hose, brake assy $7.97

19 19 14606010240 Rear hose, brake assy $5.45

20 20 10906010450 Three Links $3.38

21 21 21040402401 Wire holder $0.70

22 22 10109380010 Wire Harness Mounting Clamp 1-14 $0.70

23 23 01224060305 Hex Flange Bolt 6x30 $0.70

24 24 10406010090 Brake fuel hose clamp $0.70

25 25 01224060125 Hex Flange Bolt 6x12 $0.70

26 26 14706010040 Front brake caliper, LH $42.59

27 27 14706010050 Front brake caliper, RH $42.59

28 28 14606010140 Rear Brake Caliper, LH $24.02

29 29 14606010150 Rear Brake Caliper, RH $24.02

30 30 01256100256 Hex Flange Bolt 10x25x1.25 $0.70

31 31 01224060125 Hex Flange Bolt 6x12 $0.70

32 32 04512060027 Rivet Nut 6 $0.70

33 33 14710360000 Gear shift plate $3.64

34 34 14710360140 Rubber support $1.65

35 35 14711060150 Return spring $0.70

36 36 01214080655 Hex Flange Bolt $0.70

37 37 06119092005 Washer ¦Õ20x¦Õ8.5x2 $0.70

38 38 13205050060 Steering nylon sleeve $1.02

39 39 14711060130 Gear shift neck bushing, shorter $1.27

40 40 14711060110 Shift Arm universal joint pin $11.59

41 41 14711060140 Gear shift neck bushing, longer $1.69

42 42 14711060000 Gear shift lever $9.07

43 43 14708220000 Gear shifter bracket $28.12

44 44 14711030000 Gear shift cable $17.76

45 45 04512060025 Hex Flange Locking Nut 6 $0.70

46 46 14611010010 Throttle Cable $3.30

47 47 21040505601 Copper buckle $0.70

48 48 15106010060 Brake pad,Front $15.86

49 49 14606010650 Brake pad,Rear , LH $7.44

50 50 14606010660 Brake pad,Rear , RH $7.44

51 51 14706010000 Brake system $195.35

52 52 01214080855 Hex Flange Bolt M8x85 $0.70

53 53 14611120080 Grar shift ball $4.23

54 54 14711060090 Clamp, Gear shift cable $0.84

55 55 01224060205 Hex Flange Bolt 6x20 $0.70

56 56 04612060025 Heagon flange locking nut 6 $0.70

Choose Desired Part#: 1|14606100000|Mud shield
Price:
Sale price$1.44

Description

Desertcross 1000cc-3 Braking system
