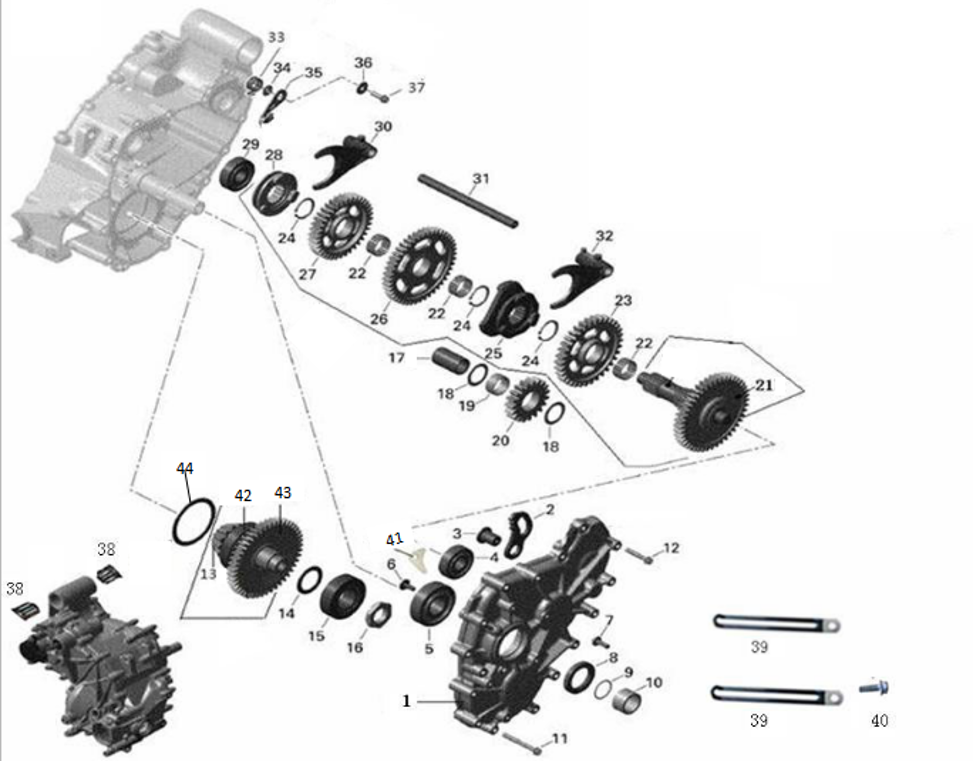

Desertcross 1000cc-3 GEAR BOX 2

#Ref Part Price Qty

1 1 21050906111 Gear Housing Left cover $22.46

2 2 21050906201 Parking lock lever $4.65

3 3 21050906301 Collar sleeve $3.47

4 4 9161006303 Ball bearing 6303e $4.70

5 5 9160006305 Ball bearing 6305 $5.72

6 6 1224060161 Hex Flange Bolt 6x16 $0.70

7 7 21050906701 Distance screw 6 $0.70

8 8 21040201801 Oil seal 32x47x7 $2.81

9 9 21040201501 O-ring 24x2 $0.70

10 10 21040201601 Distance ring 32x25x11.4 $1.02

11 11 1224060553 Hex Flange Bolt 6x55 $0.70

12 12 1224060351 Hex Flange Bolt 6x35 $0.70

13 13 21050907301 Gear $53.67

14 14 21050902903 Roller bearing 32206 $0.89

15 15 21050907501 Roller bearing $15.52

16 16 21050907601 Hex Nut 24x15 $2.79

17 17 21050907701 Intermediate gear shaft 25x18x41 $1.63

18 18 6224253404 Thrust washer 34x25x1 $0.70

19 19 10031252910 Bearing-needle? K252910 $1.54

20 20 21050908001 Intermediate gear, 19 teeth $10.21

21 21 21050908101 Main shaft 44 teeth $44.93

22 22 21050908201 Needle bearing 25x29x12.7 $5.51

23 23 21050908301 Gear pinion, 34 teeth $29.74

24 24 21050909601 Retaining ring 27 $0.70

25 25 21050908501 Shifting sleeve $38.23

26 26 21050908601 Gear pinion, 44 teeth $31.86

27 27 21050908701 Gear pinion, 36 teeth $27.61

28 28 21050908801 Shifting sleeve $21.24

29 29 9161006303 Ball bearing 6303e $4.70

30 30 21050909001 Shift fork $17.56

31 31 21050909101 Fork spindle $3.06

32 32 21050909201 Shift fork $17.15

33 33 21040203301 Index spring $0.70

34 34 21040203401 Step ring $1.02

35 35 21050909401 Index lever $1.44

36 36 21040203601 Washer $0.70

37 37 1314060203 Hex screw 6x20 $0.70

38 38 21040206301 Anti-vibration mount $2.02

39 39 21040402401 Wire holder $0.70

40 40 1224060121 Hex Flange Bolt 6x12 $0.70

41 41 21040203001 Bearing Set Plate $0.70

42 42 21050907321 Ball bearing 30207 $15.12

43 43 21050907331 Gear 45T $21.24

44 44 21050907401 Shim set 60.3x71.7x1.35 $1.61

Choose Desired Part#: 1|21050906111|Gear Housing Left cover
Price:
Sale price$22.46

Description

Desertcross 1000cc-3 GEAR BOX 2
