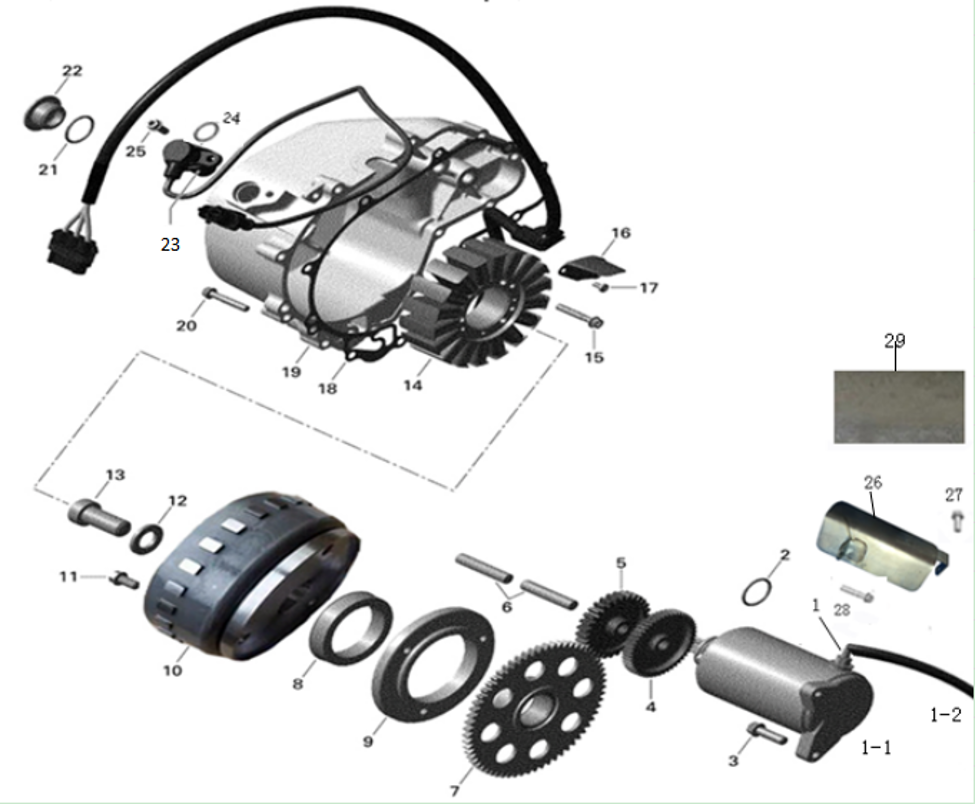

Desertcross 1000cc-3 MEGNETO

#Ref Part Price Qty

1 1 21040109100 Starter assembly $68.74

2 2 21040109118 O-ring 23.8x3.1 $0.70

3 3 2224080251 Hex Flange Bolt 8x25 $0.70

4 4 21040109201 Double gear 49T/11T $8.17

5 5 21040109301 Gear, 30 teeth $6.13

6 6 21040105901 Location pin $0.70

7 7 21040109401 Free wheel gear, 60 teeth $25.13

8 8 21040109501 Sprag clutch $27.03

9 9 21040109601 Sprag clutch housing $11.80

10 10 21041000701 Flywheel £¨ Used with 21040109702£© $119.85

11 11 3344080161 Flanged screw 8x16 $0.70

12 12 21040109901 Shim 30x16.5x3 $0.70

13 13 3344160357 Socket head screw 16x35 $0.70

14 14 21040109702 Stator plate £¨Used with 21041000701£© $66.74

15 15 1224060351 Hex Flange Bolt 6x35 $0.70

16 16 21040110101 Cable inner cover $0.70

17 17 3113040081 Tap Screw 4x8 $0.70

18 18 21040111301 Gasket $1.62

19 19 22040110201 Cover $24.53

20 20 1224060351 Hex Flange Bolt 6x35 $0.70

21 21 21040111101 O-ring $0.70

22 22 21040111201 Screw plug $0.70

23 23 21040110901 Crankshaft position sensor assembly $9.56

24 24 21040111001 O-ring 16x2 $0.70

25 25 1224060161 Hex Flange Bolt 6x16 $0.70

26 26 21051101501 Starter Shield $2.86

27 27 1224060141 Hex Flange Bolt 6x14 $0.70

28 28 1224080161 Hex Flange Bolt 8x16 $0.70

29 29 21040117501 Brake Cable-Heat Insulation Film (Thin) $0.70
