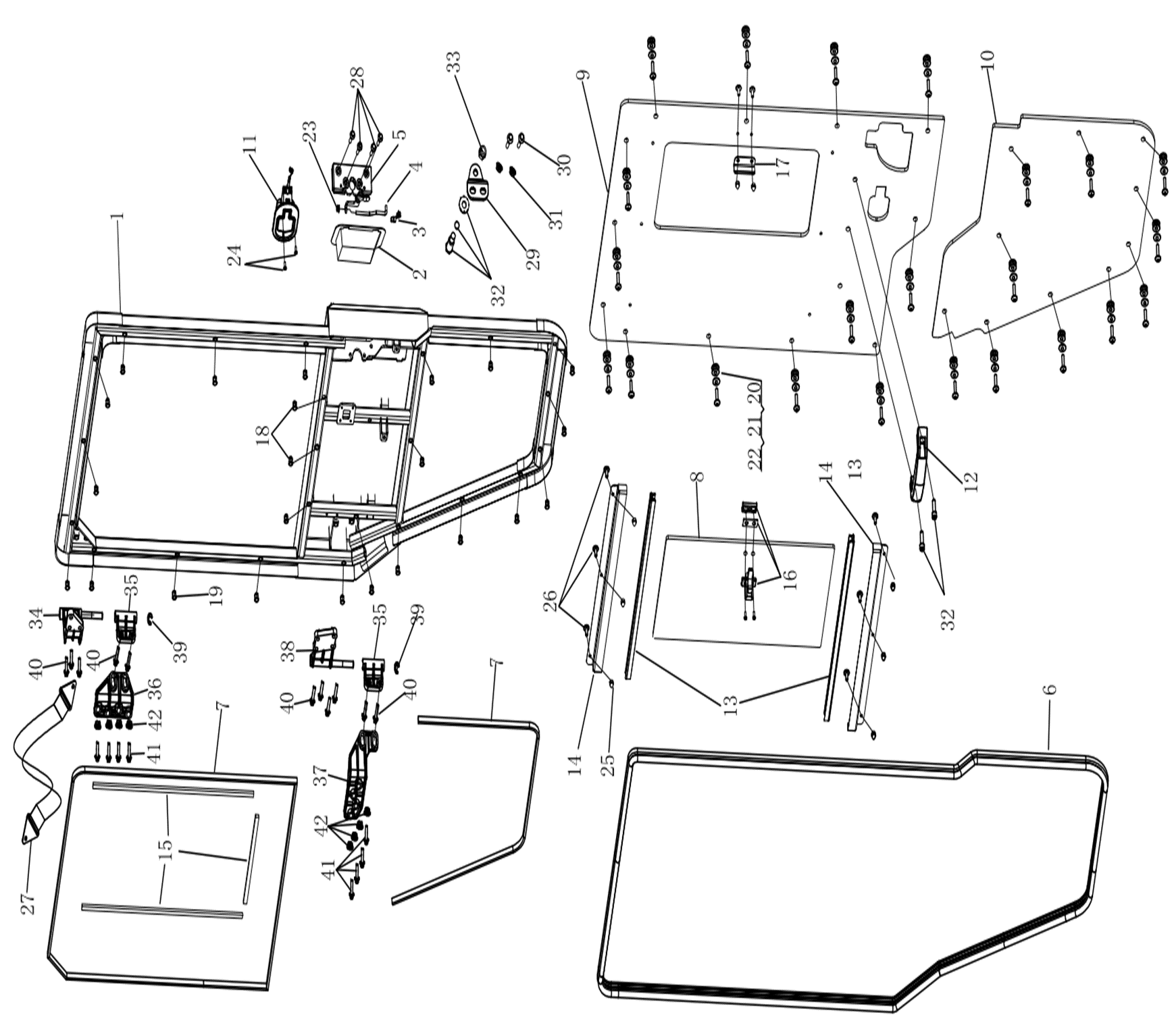

Desertcross 1000cc-6 HVAC After the door

#Ref Part Price Qty

1-1 1-1 17210340500 Door inner frame, LH $200.64

1-2 1-2 17210340600 Door inner frame, RH $200.64

2-1 2-1 16610342200 Door outer handle, LH $53.54

2-2 2-2 16610343200 Door outer handle, RH $53.54

3-1 3-1 16614100070 Clamp, outer handle, LH $0.70

3-2 3-2 16614100090 Clamp, outer handle, RH $0.70

4 4 17214100100 Connecting rod $1.86

5-1 5-1 16510342100 Door lcok, LH $25.38

5-2 5-2 16510343100 Door lcok, RH $25.38

6 6 17110340910 Sealing strip,Glass door $16.92

7 7 17110340140 side door waterproof srip $11.21

8 8 17210340320 front door push-pull window $59.21

9 9 17210340310 front door upper window $126.88

10 10 17210340330 front door lower window $126.88

11 11 16510340240 door inner lock $3.09

12 12 16614100050 handle $3.17

13 13 16510340940 window mud track $2.11

14 14 17210341000 front window upper guide $0.70

15 15 17110340530 push-pull window cushion $1.35

16 16 17110341020 push-pull window lock $3.38

17 17 17110341030 push-pull window lock position plate $3.81

18 18 4512080127 hexagon rivet nut $0.70

19 19 4512060127 hexagon rivet nut $0.70

20 20 17110341040 window rubber cushion $0.70

21 21 6119061805 flat washer $0.70

22 22 3414060254 hexagon flange screw $0.70

23 23 4612050025 hexagon lock nut $0.70

24 24 3124040165 cross shape bolt $0.70

25 25 4312060014 cap nut $0.70

26 26 3414060164 hexaton flange screw $0.70

27 27 16610340430 door strap $0.70

28 28 1254060166 hexagon flange bolt $0.70

29 29 17210340510 Rear door latch fixting plate $0.70

30 30 1256100256 hexagon flange bolt $0.70

31 31 4622100026 Hexagon flange locking nut $0.70

32 32 16510340490 latch $7.61

33 33 4212120021 hexagon flange nut $0.70

34-1 34-1 17110340711 Door?hinge?upper?left?(cast?steel) $15.32

34-2 34-2 17110340811 Door?hinge?upper?right?(cast?steel) $15.32

35 35 17110340531 Adjust hinge(cast stee) $8.53

36-1 36-1 17110340721 Door static hinge upper left(cast steel) $10.22

36-2 36-2 17110340821 Door static hinge upper right (cast steel) $10.22

37-1 37-1 17110340741 Door static hinge lower left (cast steel) $11.53

37-2 37-2 17110340841 Door static hinge lower right (cast steel) $11.53

38-1 38-1 17110340731 Door?hinge?lower left?(cast?steel) $13.73

38-2 38-2 17110340831 Door?hinge?lower?right?(cast?steel) $13.73

39 39 7031101007 Snap ring (E type) $0.70

40 40 1214080255 Heaxagon flange bolt8x25 $0.70

41 41 1224080405 hexagon flange bolt $0.70

42 42 4612080025 Hexagon flange locking nut 8 $0.70
