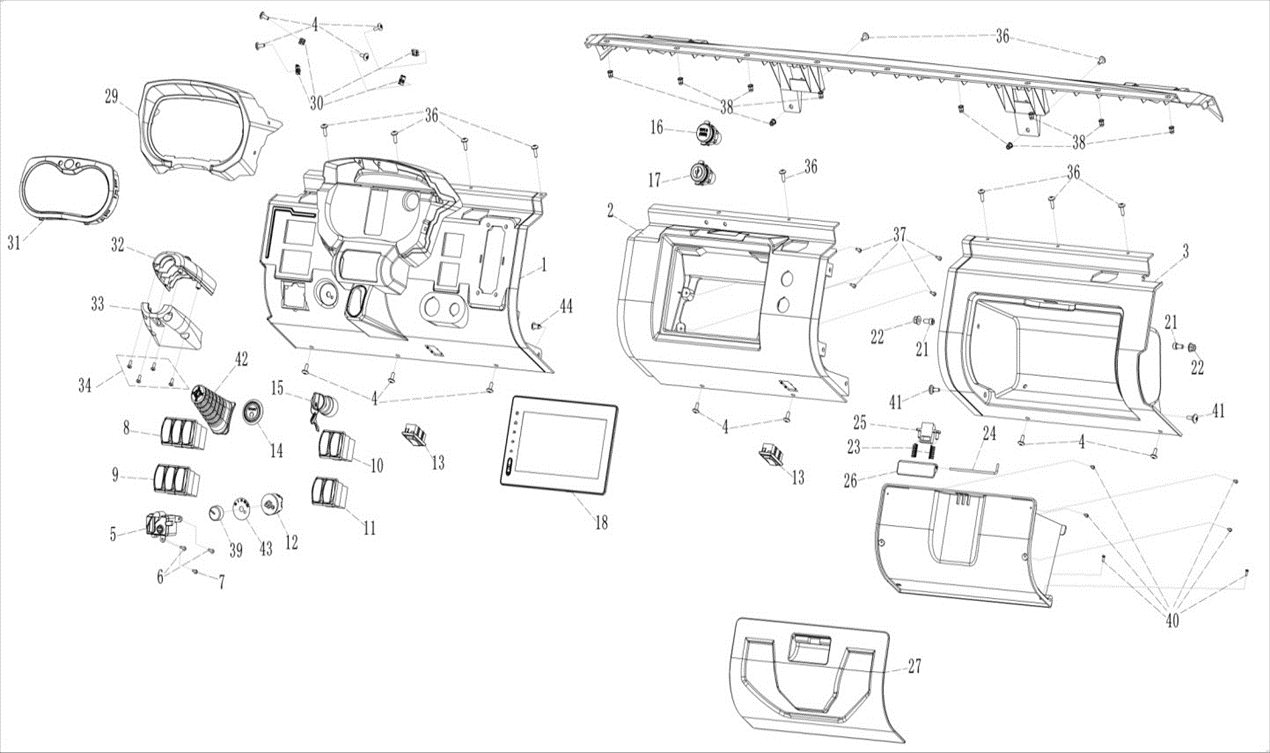

Desertcross 1000cc-6 HVAC Dash board1

#Ref Part Price Qty

1 1 16610270060 Dash Board, Left Cover $15.64

2 2 16610270070 Dash Board, Middle Cover $13.77

3 3 16610270080 Dash Board, Right Cover $17.09

4 4 03414060164 Inner Hexalobular Socket Pan Head Screws 6x16 $0.70

5 5 10909320000 2WD/4WD switch $7.61

6 6 03714420165 Tapping screws $0.70

7 7 03714420125 Tapping screws $0.70

8 8 16609190010 Combination Switch (Winch, Rear Differential Lock, Top Light ) $10.78

9 9 16609190020 Combination Switch $10.15

10 10 16609190030 Combination Switch(Headlight, Turn light) $7.19

11 11 16609190040 Combination Switch(Horn, Emergency ) $6.56

12 12 16609190051 Speed Control switch $3.47

13 13 13209190060 Combination Switch standy cover plate $0.70

14 14 10109430000 Push Start Button $16.92

15 15 16509040000 Ignition Switch $10.57

16 16 13609300000 Power Socket $7.61

17 17 14709300010 USB Socket $7.32

18 18 17109160190 Touchscreen $0.70

19 19 03714350125 Tapping screws ST3.5X12 $0.70

20 20 16610150250 Glove Box $11.33

21 21 03344080255 Hexagon socket cap screws 8x25 $0.70

22 22 04612080025 Heagon flange locking nut 8 $0.70

23 23 16610150290 Return spring $1.01

24 24 16610150280 Spindle, Glove Box lock $0.70

25 25 16610150260 Bolt, Glove Box lock $0.70

26 26 16610150270 Handel, Glove Box lock $0.70

27 27 16610150240 Glove Box Cap $5.03

28 28 16609160070 Dash Cover $1.93

29 29 16609160220 Instrument Base $2.57

30 30 04922060025 Plate Nut (Long) 6 $0.70

31 31 16509160001 Display $84.58

32 32 16610210020 Upper Cover, steering column $1.02

33 33 16610210030 Lower Cover, steering column $0.96

34 34 03714480125 Tapping screws ST4.8x12 $0.70

35 35 16610270090 Pinboard $12.92

36 36 03414060204 Inner Hexalobular Socket Pan Head Screws 6x20 $0.70

37 37 03344040101 Hexagon socket head cap screws $0.70

38 38 04512060127 Rivet Nut M6 $0.70

39 39 16609190071 Speed control switch knob cap $0.91

40 40 03714300105 Tapping screws ST3.5X10 $0.70

41 41 03464060204 Hexagon socket fancy step screw $0.70

42 42 16605050130 Air spring holster $3.81

43 43 16609190090 Air conditioner speed switch identifier $0.70

44 44 10410190000 Plastic Push Pin $0.70

Choose Desired Part#: 1|16610270060|Dash Board, Left Cover
Price:
Sale price$15.64

Description

Desertcross 1000cc-6 HVAC Dash board1
