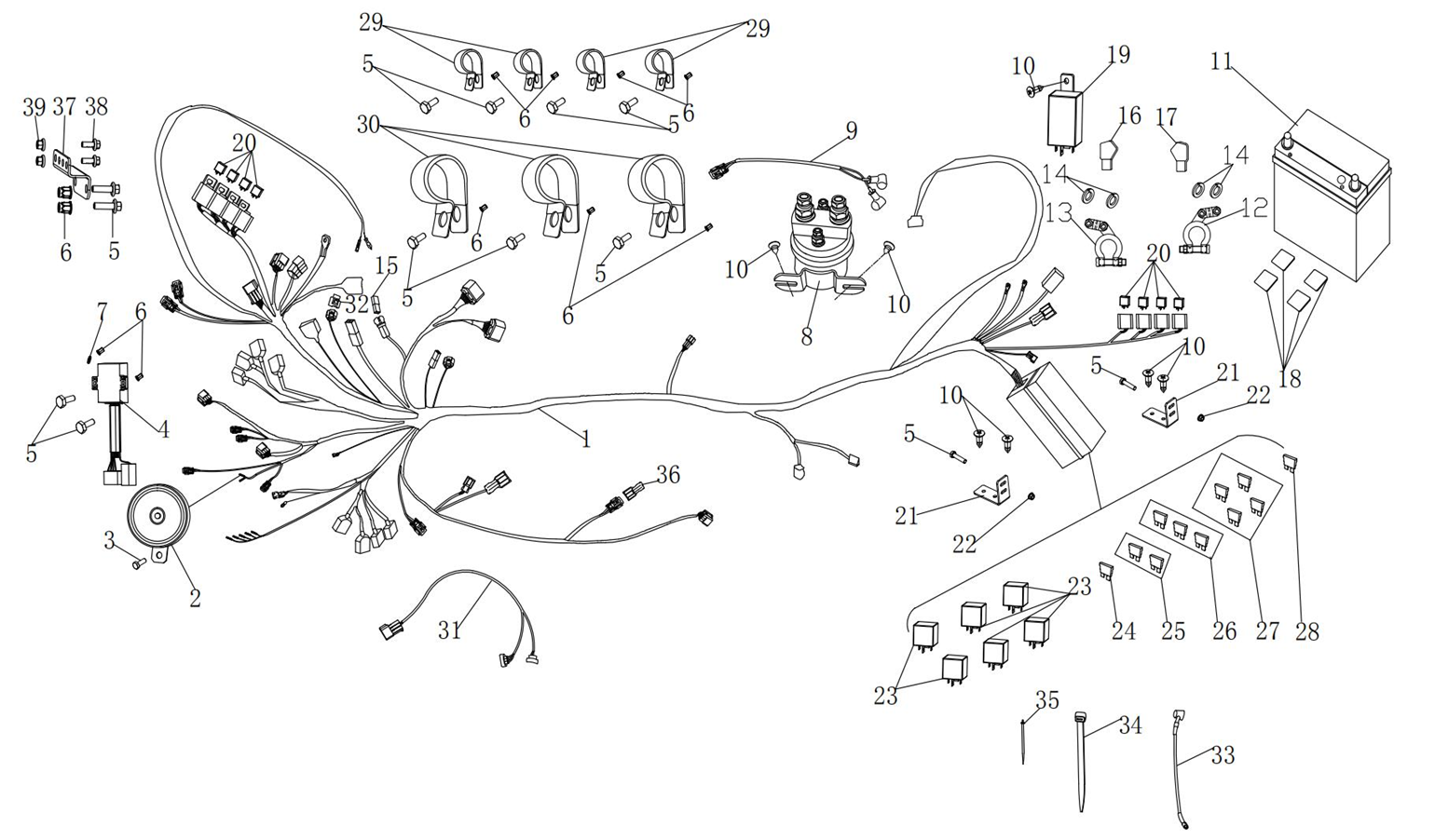

Desertcross 1000cc-6 HVAC Electircal system 1

#Ref Part Price Qty

1 1 16609020091 Wire harness, front $201.60

2 2 10409100000 Horn $4.65

3 3 01224080166 Hex Flange Bolt 8x16 $0.70

4 4 21140400302 Shift controller $50.67

5 5 01254060166 Hex Flange Bolt 6x16 $0.70

6 6 04512060127 Rivet Nut M6 $0.70

7 7 06819060004 External teeth lock washer $0.70

8 8 14109350001 Starter relay $26.43

9 9 14209010180 Starter relay connector wire $1.27

10 10 03714630205 Tapping screws ST6.3x20 $0.70

11 11 10909090000 Battery $97.27

12 12 10909090210 Battery anode mounting clip $1.44

13 13 10909090220 Battery cathode mounting clip $1.44

14 14 06619061001 Spring washer 6 $0.70

15 15 17109160250 odometer short connecting plug $0.70

16 16 10909010010 Waterproof Hat (Black) $0.70

17 17 10909010020 Waterproof Hat (Red) $0.70

18 18 10409090020 Rubber cusion, Battery $0.70

19 19 10109270000 Flasher $2.79

20 20 10109330000 2WD/4WD Solenoid $1.78

21 21 14609010150 Fuse box bracket $3.69

22 22 04612060026 Heagon flange locking nut 6 $0.70

23 23 10409340000 Diverter Relay (Four Prong) $1.78

24 24 10909010050 Fuse 10A (Red) $0.70

25 25 10909010040 Fuse 15A (Blue) $0.70

26 26 10909010070 Fuse 20A (Yellow) $0.70

27 27 10909010030 Fuse 30A (Green) $0.70

28 28 10909010230 Fuse 40A (Orange) $0.70

29 29 10109380030 Wire Harness Mounting Clamp 3 $0.70

30 30 14612080000 Clip 36 $0.70

31 31 13203100170 2wd/4wd Wire $6.13

32 32 17109560030 PDM battery seal connecting plug $1.44

33 33 14609010130 Starter Wire Harness $3.81

34 34 90103040030 Nylon Cable Ties W8x250mm $0.70

35 35 90103040053 Fixed buckle $0.70

36 36 16514240090 Camera power port sealing plug $0.70

37 37 16609350030 Relay bracket $0.70

38 38 01224050125 Hexagon flange locking nut 5x12 $0.70

39 39 04612050025 Hexagon Flange Locking Nut 5 $0.70

Choose Desired Part#: 1|16609020091|Wire harness, front
Price:
Sale price$201.60

Description

Desertcross 1000cc-6 HVAC Electircal system 1
