1 1 21040401035 Air Filter body $44.93
2 2 21040401012 Filter Element $8.17
3 3 21040401601 Clamp 12-22 $0.70
4 4 21040401501 Air filter catch hose $0.94
5 5 01254060206 Hex Flange Bolt 6x20 $0.70
6 6 04612060026 Heagon flange locking nut 6 $0.70
7 7 21051300201 Air Filter outlet pipe $17.56
8 8 21051101201 Clamp 60-80 $0.70
9 9 21140400201 Air Filter inlet pipe $35.02
10 10 16607030000 CVT inlet pipe $27.91
11 11 16607040000 CVT outlet pipe $7.62
12 12 16607030030 Clamp ¦Õ80-¦Õ100 $0.80
13 13 16607050060 Lower inlet box, connecting sleeve $27.49
14 14 16607050140 Cushion $0.70
15 15 16607050150 Fixed plate $2.46
16 16 01256100206 Hex Flange Bolt 10x20x1.25 $0.70
17 17 01224080166 Hex Flange Bolt 8x16 $0.70
18 18 04512080127 Hexagonal riveting nut M8 $0.70
19 19 16607050071 Connecting sleeve $5.33
20 20 16607050120 Clamp ¦Õ110-¦Õ130 $1.14
21 21 16607050010 Inlet connecting pipe $13.74
22 22 16607050100 Sealing sleeve $3.26
23 23 03414060164 Inner Hexalobular Socket Pan Head Screws 6x20 $0.70
24 24 04512060027 Rivet Nut 6 $0.70
25 25 16607050030 Upper inlet box, connecting sleeve $4.10
26 26 16607050020 Upper inlet box $24.53
27 27 03414060164 Inner Hexalobular Socket Pan Head Screws 6x16 $0.70
28 28 16607050040 Rubber valve $1.23
29 29 16607050080 Clamp35-51 $0.77
30 30 16607050090 Air-inlet grille $1.84
31 31 16610090011 Middle seat insulation board $54.60
32 32 16608630011 Gearbox upper insulation board $0.70
33 33 16608630021 Gearbox right insulation board $17.76
34 34 4512060127 hexagon rivet nut $0.70
35 35 16608630030 Gearbox insulation board upper bracket $2.88
36 36 16608630040 Gearbox insulation board front bracket $3.69
37 37 01254060166 Hex Flange Bolt 6x16 $0.70
38 38 04612060026 Heagon flange locking nut 6 $0.70
39 39 01254060166 Hex Flange Bolt 6x16 $0.70
40 40 16608630060 Gear box left upper heat insulation board $1.85
41 41 16607050160 Duckbill valve $1.06
42 42 Anti-rotation washer $0.70
Description

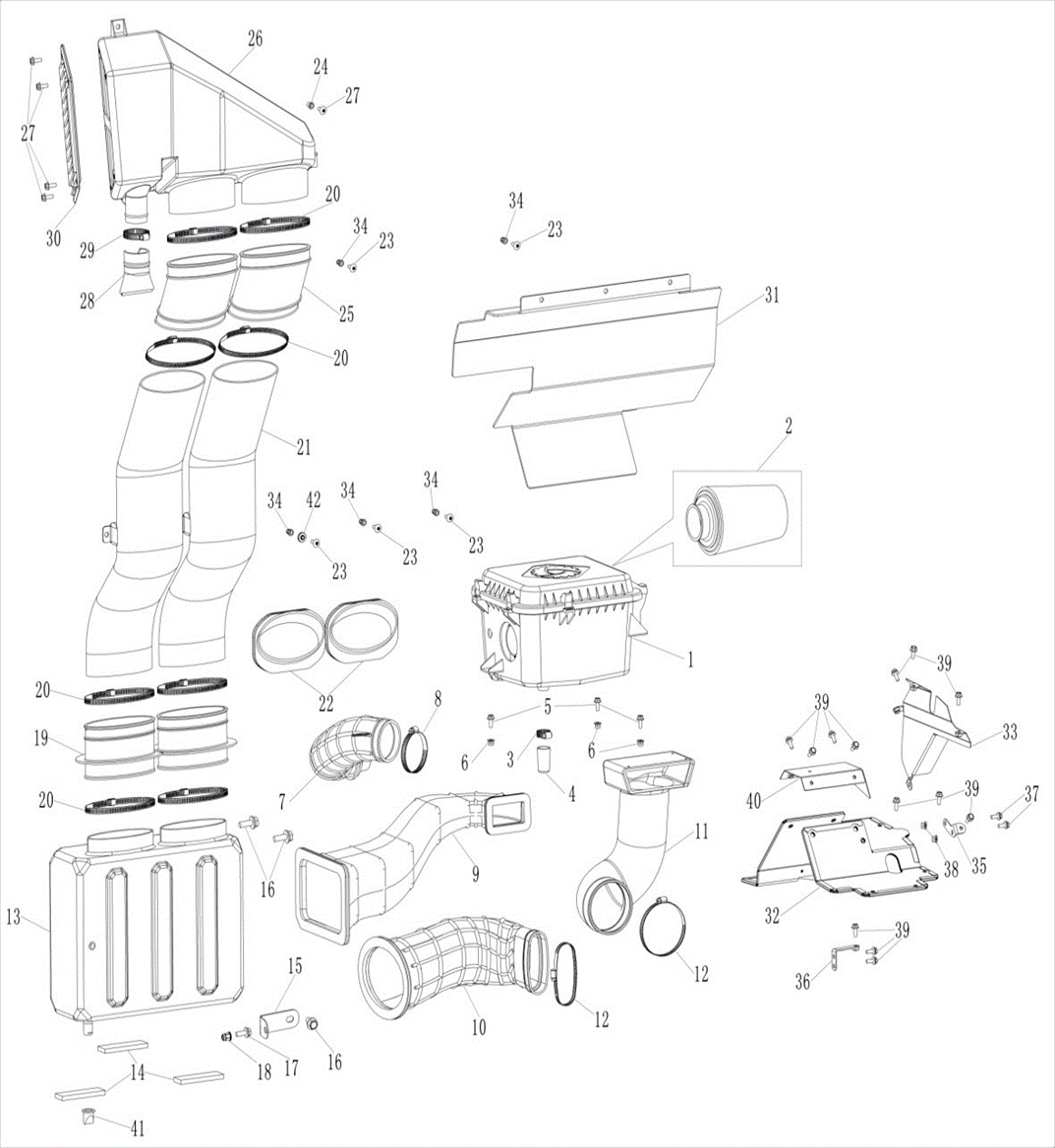

Desertcross 1000cc-6 HVAC Intake and exhaust system
