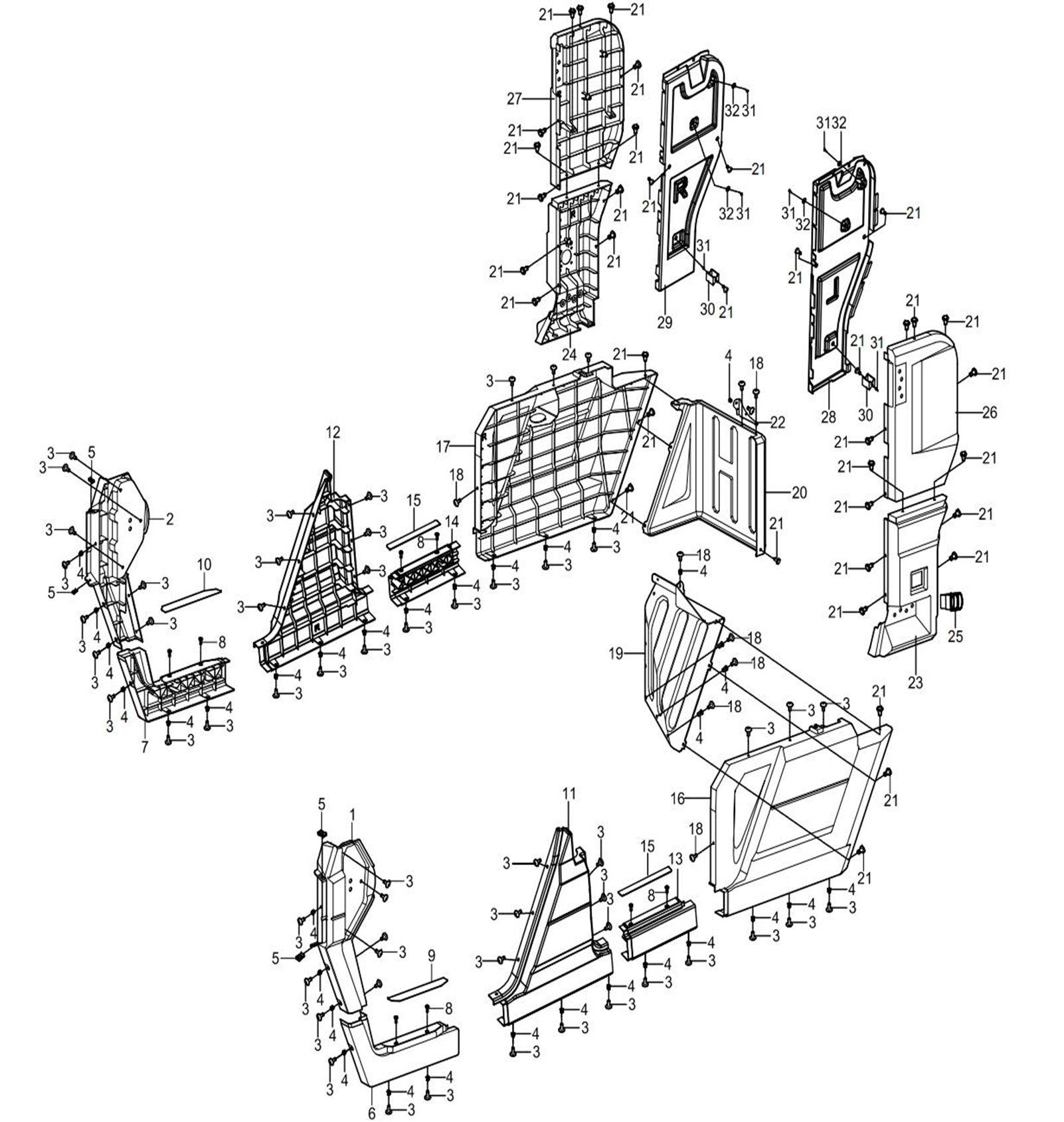

Desertcross 1000cc-6 HVAC Out covers of body

#Ref Part Price Qty

1-1 1-1 17110290440 Front guard board,desert yellow (driver side) $30.12

1-2 1-2 17110290480 Front guard board,Army green (Driver side) $30.12

1-3 1-3 17110290010 Front guard board,Black (Driver side) $9.57

2-1 2-1 17110290450 Front guard board,desert yellow (passenger side) $30.12

2-2 2-2 17110290490 Front guard board,Army green (Passenger side) $30.12

2-3 2-3 17110290020 Front guard board,Black (Passenger side) $9.57

3 3 03414060164 Inner Hexalobular Socket Pan Head Screws 6x16 $0.70

4 4 04512060127 Rivet Nut M6 $0.70

5 5 04922060025 Plate Nut (Long) 6 $0.70

6-1 6-1 16610290200 Front middle guard board, Desert yellow (passenger side) $21.96

6-2 6-2 16610290360 Front Middle guard board,Army green (Driver side) $21.96

6-3 6-3 16610290280 Front Middle guard board,Black (Driver side) $7.50

7-1 7-1 16610290210 Front middle guard board,RH $21.96

7-2 7-2 16610290370 Front Middle guard board,Army green(Passenger side) $21.96

7-3 7-3 16610290290 Front Middle guard board,Black (Passenger side) $7.50

8 8 03354060150 Allen pan head screw M6x15 $0.70

9 9 16610290171 Scuff plate,LH $4.94

10 10 16610290181 Scuff plate,RH $4.94

11-1 11-1 16610290500 Middle guard board,Desert yellow (Left outer) $26.08

11-2 11-2 16610290540 Middle guard board,Army Green (Left outer) $26.08

11-3 11-3 16610290520 Middle guard board,Black (Left outer) $15.00

12-1 12-1 16610290510 Middle guard board,Desert yellow (Right outer) $26.08

12-2 12-2 16610290550 Middle guard board,Army Green (Right outer) $26.08

12-3 12-3 16610290530 Middle guard board,Black (Right outer) $15.00

13-1 13-1 16610290560 Rear Middle Guard board ,Desert yellow (Driver side) $29.51

13-2 13-2 16610290600 Rear Middle Guard board ,Army green (Driver side) $29.51

13-3 13-3 16610290580 Rear Middle Guard board ,Black (Driver side) $4.73

14-1 14-1 16610290570 Rear Middle Guard board ,Desert yellow (Passenger side) $29.51

14-2 14-2 16610290610 Rear Middle Guard board ,Army green (Passenger side) $29.51

14-3 14-3 16610290590 Rear Middle Guard board ,Black (Passenger side) $4.73

15 15 16610290191 Welcome Pedal ,small size $4.12

16-1 16-1 16610290220 Back guard board,desert yellow(Left, lower) $62.06

16-2 16-2 16610290380 Rear Guard Board,Army Green (Left lower) $62.06

16-3 16-3 16610290110 Rear Guard Board,Black (Left lower) $29.41

17-1 17-1 16610290230 Rear guard board,desert yellow(Right lower) $62.06

17-2 17-2 16610290390 Rear Guard Board,Army Green (Right lower) $62.06

17-3 17-3 16610290120 Rear Guard Board,Black (Right lower) $28.44

19 19 16610330030 Rear fender,LH $28.97

18 18 03414060204 Inner Hexalobular Socket Pan Head Screw M6x20 $0.70

20 20 16610330040 Rear fender,RH $28.97

21 21 10410190000 Push Pin $0.70

22 22 16610330070 Rear Mud Guard board bracket(Passenger side) $6.15

23 23 16610290130 Rear guard board(Left middle) $16.62

24 24 16610290140 Rear guard board(Right middle) $16.62

25 25 15109190260 Combination switch ( 2 couplets) $7.19

26 26 16610290150 Rear guard board(Left upper) $17.75

27 27 16610290160 Rear guard board(Right upper) $12.46

28 28 16610280180 Left guard board inner lining $23.26

29 29 16610280280 Right guard board inner lining $23.26

30 30 16610280190 Left &Right guard board inner lining bracket $0.70

31 31 03714630205 Tapping screws ST6.3x20 $0.70

32 32 06119061805 Washer 6.5x18x1 $0.70

Choose Desired Part#: 1-1|17110290440|Front guard board,desert yellow (driver side)
Price:
Sale price$30.12

Description

Desertcross 1000cc-6 HVAC Out covers of body
