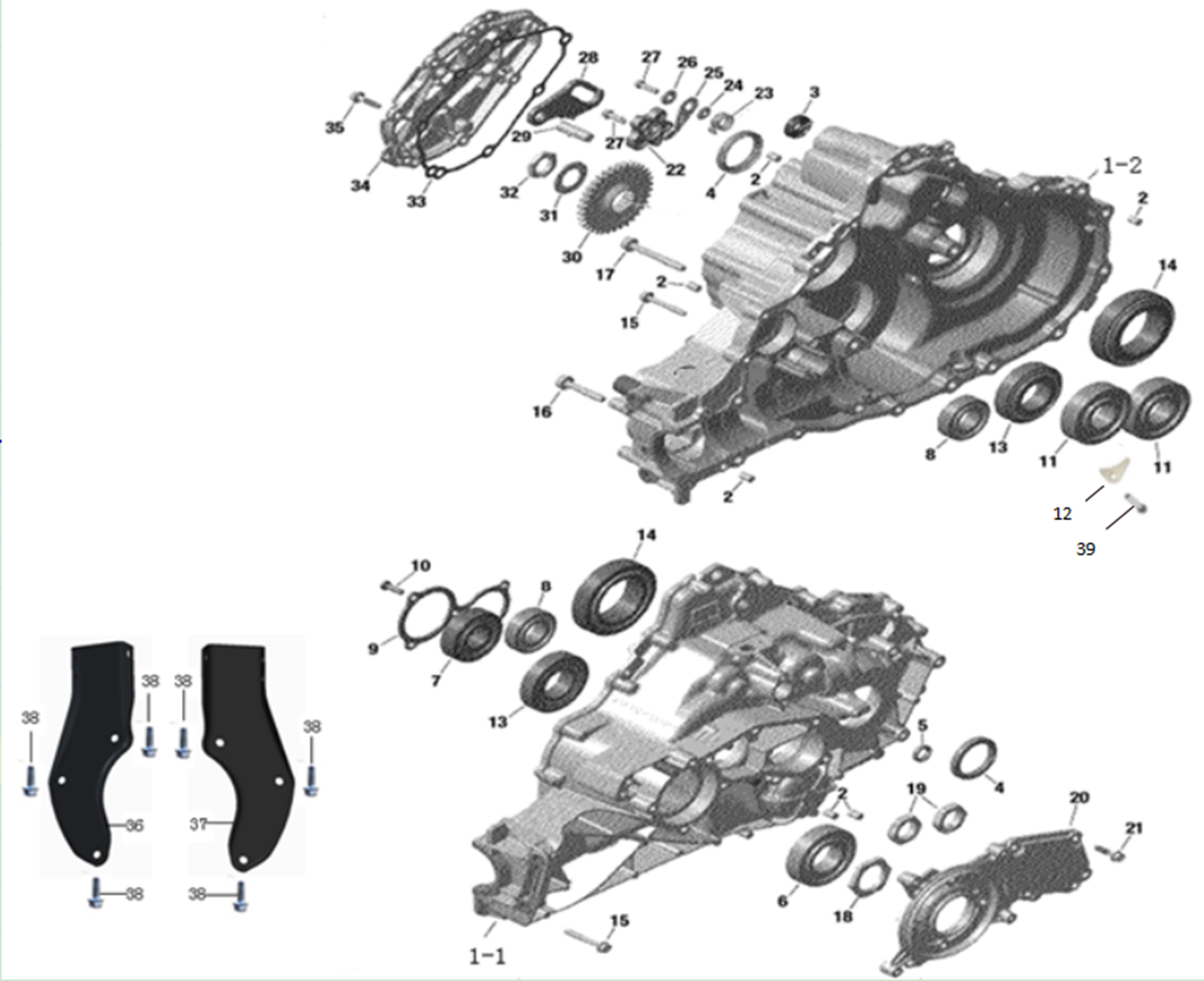

Desertcross 1000cc-6 HVAC The gearbox 3

#Ref Part Price Qty

1-1 1-1 21140207101 Gearbox Ass'y. $65.48

1-2 1-2 21140207201 Gearbox Ass'y. $67.92

2 2 21040105401 Center Pin 8 X 12 $0.70

3 3 21040200701 Oil Seal $1.82

4 4 21140200101 Oil Seal $2.10

6 6 21140207401 Ball Bearing $8.58

7 7 21140207501 Ball Bearing $7.35

8 8 21140207601 Ball Bearing 6205 $13.48

9 9 21140207701 Retaining Plate $4.02

10 10 21140207801 Flanged Torx Screw M6 X 20 $0.70

11 11 21140207901 Ball Bearing $13.89

12 12 21040203001 BEARING SET PLATE $0.70

13-1 13-1 01224060161 Hex Flange Bolt 6x16 $0.70

13-2 13-2 21050907321 Roller Bearing $15.12

14 14 21140208101 Ball Bearing. $51.06

15 15 01314060451 Flanged Torx Screw M6 X 45 $0.70

16 16 01314080451 Flanged Torx Screw M8 X 45 $0.70

17 17 01314080651 Flanged Torx Screw M8 X 65 $0.70

18 18 21140203101 Hex. Nut M34 $3.38

19 19 21140206501 Hex. Nut M24 $79.67

20 20 21140208401 Bearing Cover $5.95

21 21 01314060251 Flanged Torx Screw M6 X 25 $0.70

22 22 21140208501 Index Washer $4.86

23 23 21140208601 Spring $0.70

24 24 21040203401 Step Ring $1.02

25 25 21050909401 Index Lever Ass'y $1.44

26 26 21040203601 Washer $0.70

27 27 01224060201 Flanged Torx Screw M6 X 20 $0.70

28 28 21140208701 Parking Lock Lever $4.27

29 29 21140208801 Needle Pin $1.43

30 30 21140208901 Gear $14.80

31 31 21140209001 Spring Washer $0.70

32 32 21140209101 Nut $3.38

33 33 21140209201 Gasket $1.03

34 34 21140209301 Gearbox Cover $5.85

35 35 01314060252 Flanged Torx Screw M6x25 $0.70

36 36 21140209401 Hang bracket, LH $2.82

37 37 21140209501 Hang bracket, RH $2.82

38 38 01225080251 Hex Flange Bolt 8x25 $0.70

39 39 01224060161 Hex Flange Bolt 6x16 $0.70

Choose Desired Part#: 1-1|21140207101|Gearbox Ass'y.
Price:
Sale price$65.48

Description

Desertcross 1000cc-6 HVAC The gearbox 3
