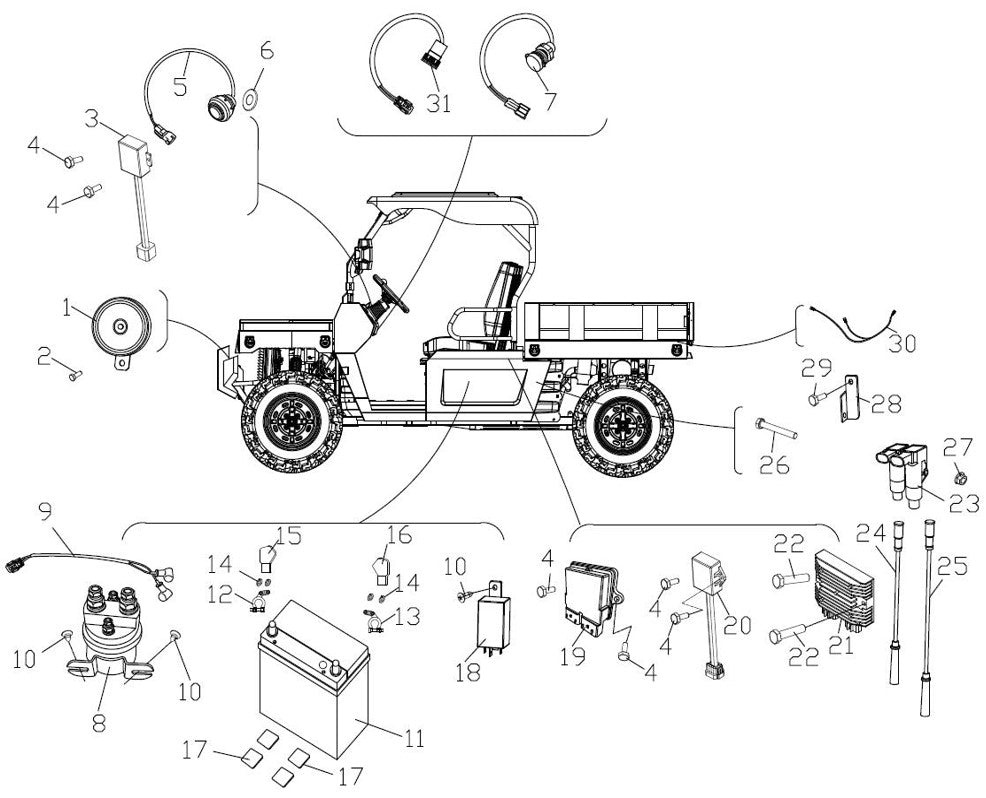

Desertcross 800cc-3 Electircal system

#Ref Part Price Qty

1 1 10409100000 Horn $4.65

2 2 01214080165 Hex Flange Bolt 8x16 $0.70

3 3 10109360001 Reverse speed controller $21.99

4 4 01224060165 Hex Flange Bolt 6x16 $0.70

5 5 10109430000 Push Start Button $16.92

6 6 14609430010 Rubber cushion, Push start button $0.70

7 7 13609300000 Power Socket $7.40

8 8 14109350001 Starter relay $24.74

9 9 14209010180 Starter relay connector wire $5.11

10 10 03714630205 Tapping screws ST6.3x20 $0.70

11 11 10909090000 Battery $97.27

12 12 10909090210 Battery anode mounting clip $1.44

13 13 10909090220 Battery cathode mounting clip $1.44

14 14 06619061001 Spring washer 6 $0.70

15 15 10909010010 Waterproof Hat (Black) $0.70

16 16 10909010020 Waterproof Hat (Red) $0.70

17 17 10409090020 Rubber cusion, Battery $0.70

18 18 10109270000 Flasher $2.79

19 19 21040400501 ECU Module $93.19

20 20 14108250030 Rear flooding lock controller $15.11

21 21 21051100203 Voltage regulator (high power) $106.20

22 22 01214060355 Hex Flange Bolt 6x35 $0.70

23 23 21040400201 Ignition Coil $19.12

24 24 21040400402 Spark Plug Cable(Front) $3.68

25 25 21040400302 Spark Plug Cable(Rear) $3.68

26 26 01224060751 Hex Flange Bolt 6x75 $0.70

27 27 04612060025 Heagon flange locking nut 6 $0.70

28 28 10909220011 Ignition Coil Mounting Bracket $0.70

29 29 01224060121 Hex Flange Bolt 6x12 $0.70

30 30 14609070160 Tail light cable $8.46

31 31 14709300010 USB Socket $7.15
