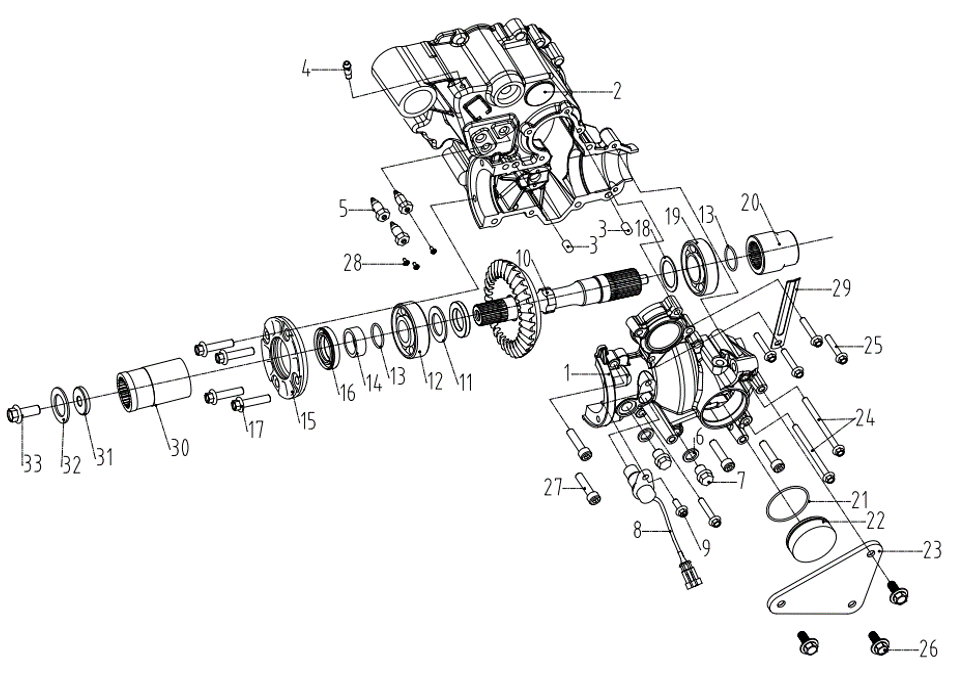

Desertcross 800cc-3 GEAR BOx 2

#Ref Part Price Qty

1 1 21040200201 Gear Housing Right cover $79.89

2 2 21040200301 Gear housing $150.50

3 3 21040105401 Center pin 8x12 $0.70

4 4 21040200402 Breathe pipe $2.10

5 5 21040200801 Angle rotation sensor $10.15

6 6 21040104701 Copper washer 18x12.4x2 $0.70

7 7 21040104801 Plug screw 12x15 $1.50

8 8 21040200101 Sensor-Speed $69.21

9 9 01224060161 Hex Flange Bolt 6x16 $0.70

10 10 21040200902 Drive Shaft Assembly $447.90

11 11 21040201302 Thrust Washer $2.01

12 12 09160006305 Ball bearing 6305 $23.66

13 13 21040201501 O-ring 24x2 $2.17

14 14 21040201601 Distance ring 32x25x11.4 $4.22

15 15 21040201701 Bearing Cover $11.03

16-1 16-1 21040201801 Oil seal 32x47x7 $11.64

17 17 01225080251 Hex Flange Bolt 8x25 $0.70

16-2 16-2 21040201907 Adjust Washer $1.75

18 18 21040201903 Adjust Washer $1.84

19 19 09160006206 Bearing Ball 6206 $24.50

20 20 21040202101 Shifting sleeve kit $25.36

21 21 21040115801 O-ring 47x2 $0.70

22 22 21140210301 Gear box plug $15.00

23 23 21140200202 Gear box plate $16.19

24 24 01214060851 Hex Flange Bolt 6x85 $0.81

25 25 01224060351 Hex Flange Bolt 6x35 $0.70

26 26 21040102301 Flanged torx screw 8x20 $1.21

27 27 03344080351 Allen Screw M8x35 $0.70

28 28 21040206501 Screw 3x6 $0.70

29 29 21040402401 Wire holder $1.93

30 30 21040207001 Connecting bush, output shaft $78.75

31 31 21040116501 Washer $12.64

32 32 21040201302 Adjust Washer $2.01

33 33 01324100255 Hex Flange Bolt 10x1.5x25 $0.88

Choose Desired Part#: 1|21040200201|Gear Housing Right cover
Price:
Sale price$79.89

Description

Desertcross 800cc-3 GEAR BOx 2
