1 1 21040109100 Starter assembly $284.43
2 2 02224080251 Hex Flange Bolt 8x25 $0.70
3 3 21040109201 Double gear 49T/11T $33.81
4 4 21040109301 Gear, 30 teeth $31.64
5 5 21040109401 Free wheel gear, 64 teeth $103.97
7 7 21040109501 Sprag clutch $111.86
8 8 21040109601 Sprag clutch housing $48.81
9 9 03344080161 Flanged screw 8x16 $0.70
10 10 21040109702 Stator plate $276.15
11 11 21041000701 Flywheel $495.95
12 12 21040109901 Shim 30x16.5x3 $2.71
13 13 03344160357 Socket head screw 16x35 $2.68
14 14 01224060351 Hex Flange Bolt 6x35 $0.70
15 15 21040110101 Cable inner cover $1.58
16 16 03113040081 Tap Screw 4x8 $0.70
17 17 22040110201 Cover $101.50
18 18 21040110401 Pressure relief valve $0.79
19 19 21040110501 Compression spring $0.70
20 20 21040110601 Housing valve $1.52
21 21 21040500601 O-ring ¦Õ22.5x2.7 $0.70
22 22 21040110801 Screw plug 22x1.5 $5.60
23 23 21040110901 Crankshaft position sensor assembly $39.55
24 24 01224060161 Hex Flange Bolt 6x16 $0.70
25 25 21040111101 O-ring $1.38
26 26 21040111201 Screw plug $1.49
27 27 21040111301 Gasket $6.72
28 28 21040111001 O-ring 16x2 $0.74
29 29 21040109118 O-ring 23.8x3.1 $0.70
30 30 21040516801 Starter Shield $11.83
31 31 01224060141 Hex Flange Bolt 6x14 $0.70
32 32 01224060251 Hex Flange Bolt 6x25 $0.70
33 33 04633060023 Hex Flanged elastic nut 6 $0.70
34 34 21040117501 Brake Cable-Heat Insulation Film (Thin) $0.70
35 35 21040110301 Cushion $1.33
36 36 21040402401 Wire holder $1.93
Description

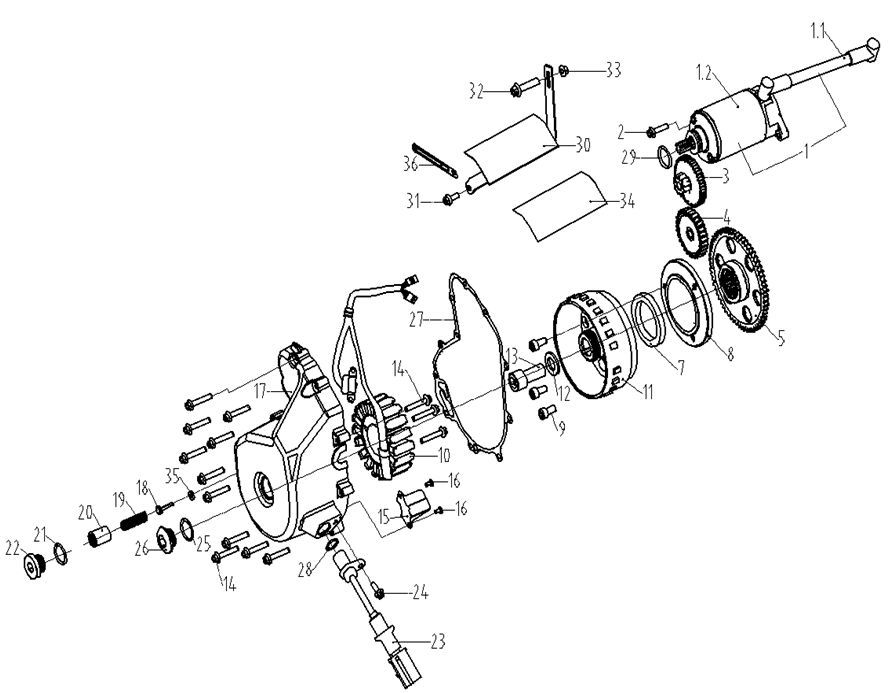

Desertcross 800cc-3 MEGNETO
