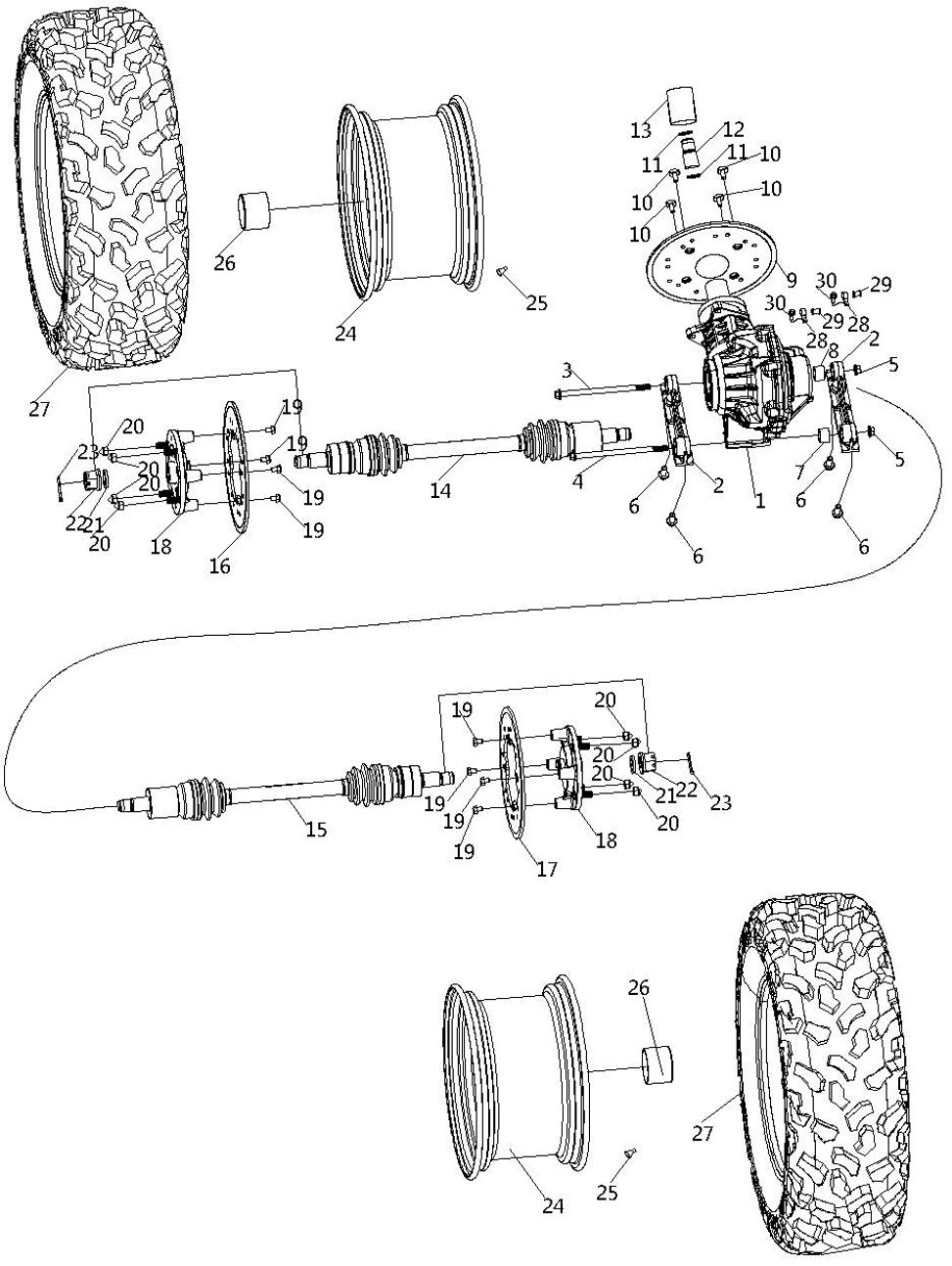

Desertcross 800cc-3 Rear Drive system

#Ref Part Price Qty

1 1 14603120100 Rear differential $570.94

2 2 14203120100 Fixing mount, rear differential $14.80

3 3 01256101806 Hex Flange Bolt 10x180x1.25 $0.95

4 4 01256101856 Hex Flange Bolt 10x185x1.25 $0.99

5 5 04622100026 Heagon flange locking nut 10x1.25 $0.70

6 6 01256100206 Hex Flange Bolt 10x20x1.25 $0.70

7 7 14103120111 Front bushing, rear differential $0.80

8 8 14103120121 Rear bushing, rear differential $0.80

9 9 14606010030 Parking brake disk $9.94

10 10 01824080161 Allen T type bolt 8x16 $0.70

11 11 14603130020 Spring $1.14

12 12 14603130000 Rear transmisson shaft $19.03

13 13 14603130010 Protect cover, transmission shaft $1.48

14 14 14601240001 Rear C.V shaft, LH $80.35

15 15 14601250001 Rear C.V shaft, RH $80.35

16 16 10106010340 Rear brake disc, LH $13.24

17 17 10106010350 Rear brake disc, RH $13.24

18 18 15101040000 Rear wheel-hub $27.05

19 19 01824080205 Allen T type bolt 8x20 $0.70

20 20 04322120021 Acorn nut 12x1.25, wheel $0.94

21 21 15101250010 Front butterfly washer $1.43

22 22 04812240022 Slotted flange nut 24 $1.59

23 23 05011400405 Cotter pin 4.0x40 $0.70

24-1 24-1 10905040211 Rear Rim 14x9 $80.99

24-2 24-2 14605040210 Rear Rim 14x8 ET20 $55.83

25 25 10405230030 Air Valve $0.70

26-1 26-1 10405230020 Wheel Dust-Proof Cover $3.17

26-2 26-2 14605230021 Wheel Dust-Proof Cover $1.31

27 27 16605310010 Rear Tire 27x11-14 $137.36

28 28 10406010090 Brake fuel hose clamp $0.70

29 29 10106010520 Brake Cable Rubber Sleeve $0.70

30 30 01224060205 Hex Flange Bolt 6x20 $0.70

Choose Desired Part#: 1|14603120100|Rear differential
Price:
Sale price$570.94

Description

Desertcross 800cc-3 Rear Drive system
