1-1 1-1 21050300102 Right crankcase $103.61
1-2 1-2 21050300201 Left crankcase $108.27
2 2 21040105401 Center pin 8x12 $0.70
3 3 21040105801 Plug screw npt 1/4 $0.70
4 4 21040105601 Plug screw npt 1/2 $0.70
5 5 21040105701 Plug screw npt 1/8 $0.70
6 6 21040105502 Drive pin 5x11 $0.70
7 7 21040106301 Needle pin 6x10 $0.70
8 8 21040116001 Dowel pin 10x16 $0.70
9-1 9-1 21040106001 Plain bearing $4.53
9-2 9-2 21040106002 Plain bearing $3.15
10-1 10-1 21040106101 Plain bearing $4.74
10-2 10-2 21040106102 Plain bearing $3.20
11 11 21040106201 Oil seal 10x25x5 $0.70
12 12 21050301211 Insert pin $2.04
13 13 21050301301 Stud M8x69 $0.70
14 14 21040107401 Sealing ring §¶8 $0.70
15 15 1224080161 Hex Flange Bolt 8x16 $0.70
16 16 21050301601 Gasket $3.05
17 17 1224060251 Hex Flange Bolt 6x25 $0.70
18 18 1214080651 Hex Flange Bolt 8x65 $0.70
19 19 1214060751 Hex Flange Bolt 6x75 $0.70
20-1 20-1 21040106501 Valve plate $6.21
20-2 20-2 21040106502 Valve plate $0.70
21 21 21040106601 Reed valve stop $0.85
22 22 1224060161 Hex Flange Bolt 6x16 $0.70
23 23 21040106901 Gasket $1.94
24 24 21050302400 Pot cover assembly $22.63
25-1 25-1 21040107101 Bearing sleeve $5.58
25-2 25-2 21040107101 Bearing sleeve $5.58
26 26 21040107301 Oil seal 34x52x8 $3.13
27 27 21040105701 Plug screw npt 1/8 $0.70
28 28 21040107201 Hose outlet npt1/4 $0.93
29 29 1224060351 Hex Flange Bolt 6x35 $0.70
30 30 21040206301 Anti-vibration mount $2.02
31 31 90101120650 Insert pin 10*1.5-17K $0.82
32 32 21050302411 Slip insert $1.27
33-1 33-1 4112080021 Hex Nut 8 $0.70
33-2 33-2 21040105401 Center pin 8x12 $0.70
Description

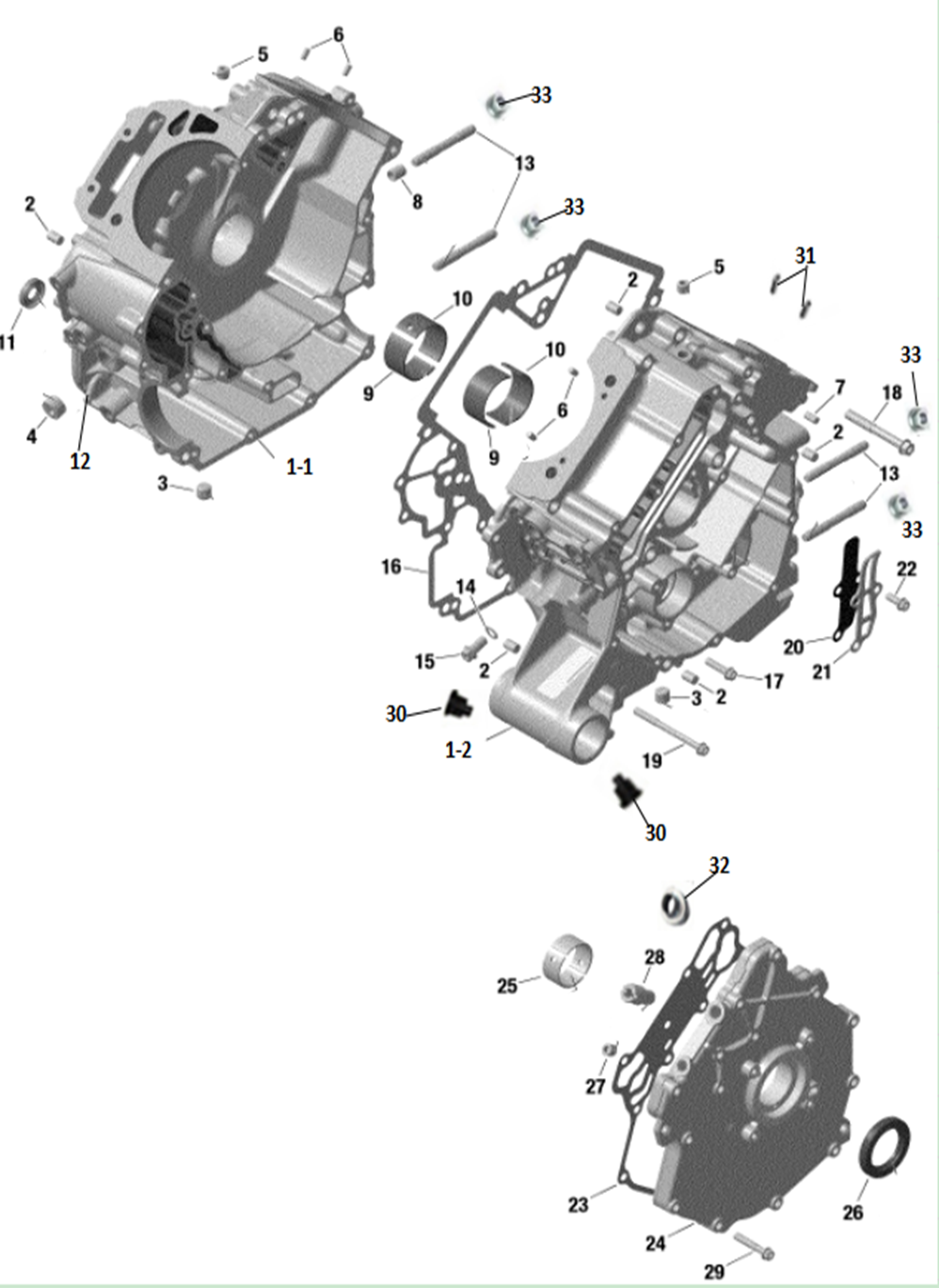

Sportcross 1000cc LT-2 CRANKCASE
