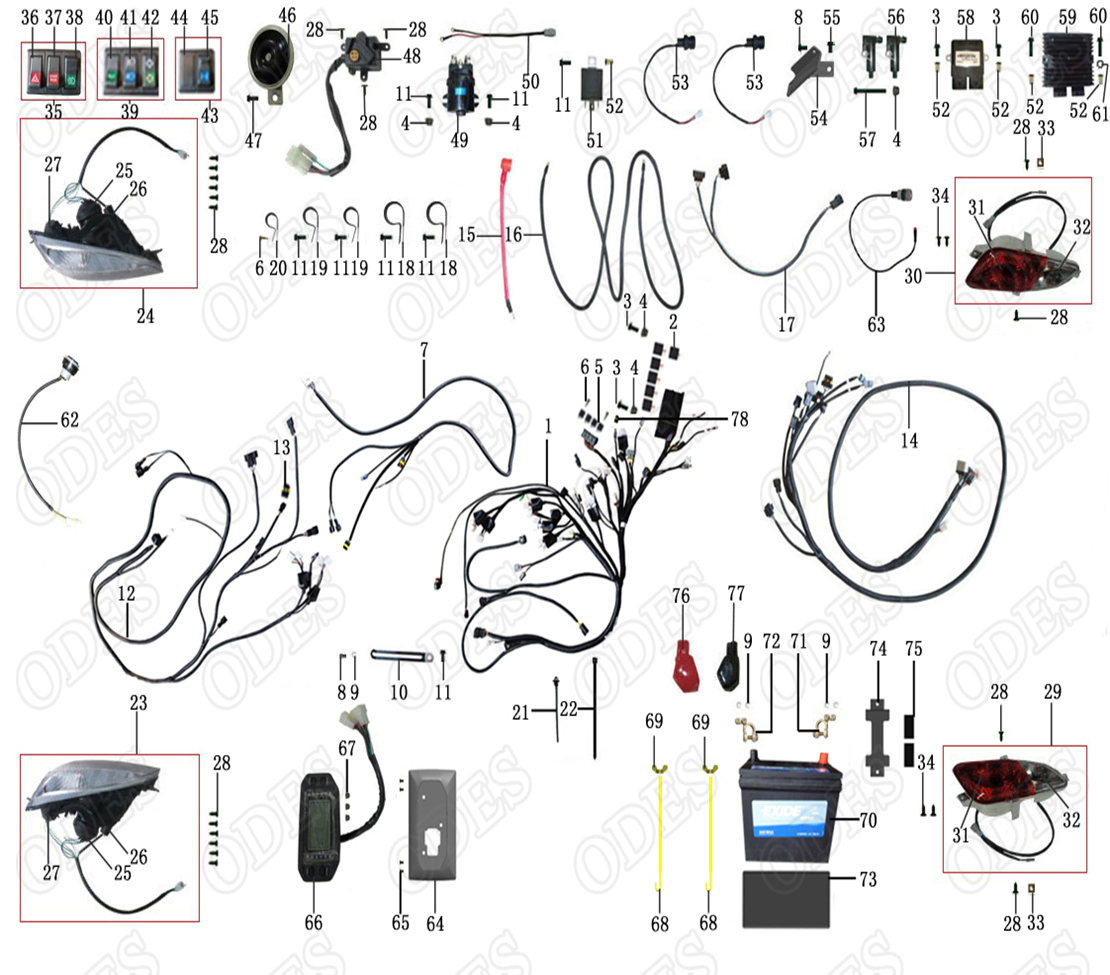

Sportcross 1000cc LT-2 Electircal system1

#Ref Part Price Qty

1 1 14409020090 Wire harness, Front $120.53

2 2 10409340000 Diverter Relay (Four Prong) $1.78

3 3 01254060206 Hex Flange Bolt 6x20 $0.70

4 4 04612060026 Hex Flange Locking Nut 6 $0.70

5 5 10109330000 2WD/4WD Solenoid $1.78

6 6 03654050202 Drill Tail Bolt 5x20 $0.70

7 7 15209020100 Wire harness,Middle $11.84

8 8 01224060121 Hex Flange Bolt 6x12 $0.70

9 9 06619061001 Spring washer 6 $0.70

10 10 21040402401 Wire holder $0.70

11 11 01254060166 Hex Flange Bolt 6x16 $0.70

12 12 14409020110 Wire harness,Rear $33.83

13 13 15109080030 Connector DJ7022Y-2-11 $0.70

14 14 15109410000 Engine Wire Harness $68.84

15 15 14609010130 Starter Wire Harness L=200mm $12.67

16 16 13209010150 Earth wire, cathode L=2600 $22.41

17 17 13203100170 2wd/4wd Wire $6.13

18 18 15109380040 Wire Harness Mounting Clamp 42 $0.95

19 19 14612080000 Clip 36 $0.70

20 20 10109380020 Wire Harness Mounting Clamp 2-20 $0.70

21 21 90103040053 Buckle $0.70

22 22 90103040030 Nylon Cable Ties W8x250mm $0.70

23 23 13209060031 Front Headlight, LH $63.44

24 24 13209060041 Front Headlight, RH $63.44

25 25 13209060060 High/low beam bulb 35W $4.23

26 26 13209120010 Turn signal light bulb 10W $4.23

27 27 13209060050 Driving lamp bulb $4.23

28 28 03714480165 Tapping Screws 4.8x16 $0.70

29 29 10709070010 Tail Light, LH $16.92

30 30 10709070020 Tail Light, RH $16.92

31 31 10709070190 Brake light bulb 5W/21W $6.34

32 32 10709070030 Turn signal light bulb 10W $6.34

33 33 04912480025 Tapping Screws 4.8 $0.70

34 34 03714420125 Tapping screws ST4.2x12 $0.70

35 35 14309190220 3-switch combo $10.15

36 36 14109310000 Emergency Switch $3.38

37 37 13209190090 Control switch, reverse gear $3.38

38 38 10109190070 Switch, Top Light $3.38

39 39 13209190210 3-switch combo $9.95

40 40 10909190030 Switch, Horn $3.38

41 41 10909190010 Switch, Headlight $3.38

42 42 10909190020 Switch, Turn Signal Light $3.38

43 43 15109190190 2-switch combo $3.75

44 44 14109190170 Combination Switch $0.70

45 45 14108250020 Rear Reducer Control Lock $3.38

46 46 10409100000 Horn $4.65

47 47 01214080166 Hex Flange Bolt 8x16 $0.70

48 48 10909320000 2WD/4WD Switch $7.61

49 49 14109350001 Starter relay $26.43

50 50 14209010180 Starter relay connector wire $1.27

51 51 10109270000 Flasher $2.79

52 52 04512060027 Rivet Nut 6 $0.70

53 53 13609300000 Power Socket $7.40

54 54 14109220010 Ignition Coil Mounting Bracket $1.35

55 55 01224080106 Hex Flange Bolt 8x10 $0.70

56 56 21040400201 Ignition Coil $19.12

57 57 01214060751 Hex Flange Bolt 6x75 $0.70

58 58 21051100101 ECU MODULE $93.19

59 59 21051100203 Voltage regulator (high power) $106.20

60 60 01214060356 Hex Flange Bolt 6x35 $0.70

61 61 06819060004 External teeth lock washer 6 $0.70

62 62 10109430000 Push Start Button $16.92

63 63 15109530000 Foot Rest Light $4.65

64 64 14109160220 Instrument Base $2.37

65 65 03344040102 Hex Flange Bolt 4x10 $0.70

66 66 14109160000 Display $76.13

67 67 04612050025 Heagon flange locking nut 5 $0.70

68 68 14409090080 Batter Mounting Hook Bolt $1.25

69 69 10909090070 Batter Mounting Wing Nut $0.70

70 70 10909090000 Battery $97.27

71 71 10909090210 Battery anode mounting clip $1.44

72 72 10909090220 Battery cathode mounting clip $1.44

73 73 14409090020 Battery Bottom Rubber $3.38

74 74 10909090060 Battery Fixed Bracket(Upper) $8.67

75 75 10409090020 Rubber cusion, Battery $0.70

76 76 10909010020 Waterproof Hat (Red) $0.70

77 77 10909010010 Waterproof Hat (Black) $0.70

78 78 15109080060 Connector DJ7031Y-2-11 $0.70
