1-1 1-1 21050900111 Gear housing $76.55
1-2 1-2 21050900121 Gear Housing Right cover $61.96
2 2 21040105401 Center pin 8x12 $0.70
3 3 21050900131 Dowel pin $0.70
4 4 21050905901 Breathe pipe $2.04
5 5 9160006204 Ball bearing 6204 $1.84
6 6 21040200701 Oil seal 12x28x7 $1.82
7 7 1224080351 Hex Flange Bolt 8x35 $0.70
8 8 21050900801 Plain washer 24x8.3x2 $0.70
9 9 21050900901 Intermediate gear, 30 teeth $8.50
10 10 21050901011 Shift shaft $4.19
11 11 21050901021 Spring $2.77
12 12 21050901031 Tooth segment $4.53
13-19 13-19 21050901300 Shift drum assembly $110.28
20 20 21050902001 Thrust washer 31x21.3x1.6 $0.85
21 21 21050902101 Index washer $8.99
22 22 3344060203 Allen screw 6x20 $0.70
23 23 21050902301 Main Shaft $63.31
24 24 21050902401 Oil seal 31x21.3x1.6 $5.40
25 25 21050902501 Ball bearing SKF BA2-7353 $93.95
26 26 21050902602 Drive axle set $155.14
27 27 21050902701 Groove nut $4.08
28 28 21050902801 Ball bearing 6207N/C3 $11.64
29 29 21050902900 Shim set 42x30x1.2 $0.70
30 30 21050903001 Angular ring $1.69
31 31 21050903101 Half location ring $2.05
32 32 21040202101 Shifting sleeve kit $6.21
36 36 1214060851 Hex Flange Bolt 6x85 $0.70
37 37 1214080551 Hex Flange Bolt 8x55 $0.70
38 38 1224060351 Hex Flange Bolt 6x35 $0.70
39 39 1224060553 Hex Flange Bolt 6x55 $0.70
40 40 21050904001 Angle rotation sensor $62.90
41 41 1224060161 Hex Flange Bolt 6x16 $0.70
42 42 21050904201 Speed sensor $17.09
43 43 1224060161 Hex Flange Bolt 6x16 $0.70
44 44 21050904401 O-ring 14x3 $0.70
45 45 21050904501 Plug screw 14x15 $0.70
46 46 21040104701 Copper washer 18x12.4x2 $0.70
47 47 21050904701 Magnetic drain plug $1.03
48 48 21040115801 O-ring 47x2 $0.70
49 49 21140210301 Gear box plug $3.29
50 50 21140210202 Gear box plate $3.91
51 51 21040102301 Flanged torx screw 8x20 $0.70
52 52 21050905603 Gear shift lever $4.44
53 53 1224060351 Hex Flange Bolt 6x35 $0.70
54 54 4633060023 Hex Flanged elastic nut 6 $0.70
55 55 1224060281 Hex Flange Bolt 6x28 $0.70
56 56 21050904011 O-ring 29x2 $0.70
57 57 21050904211 O-ring 13x1.9 $0.70
Description

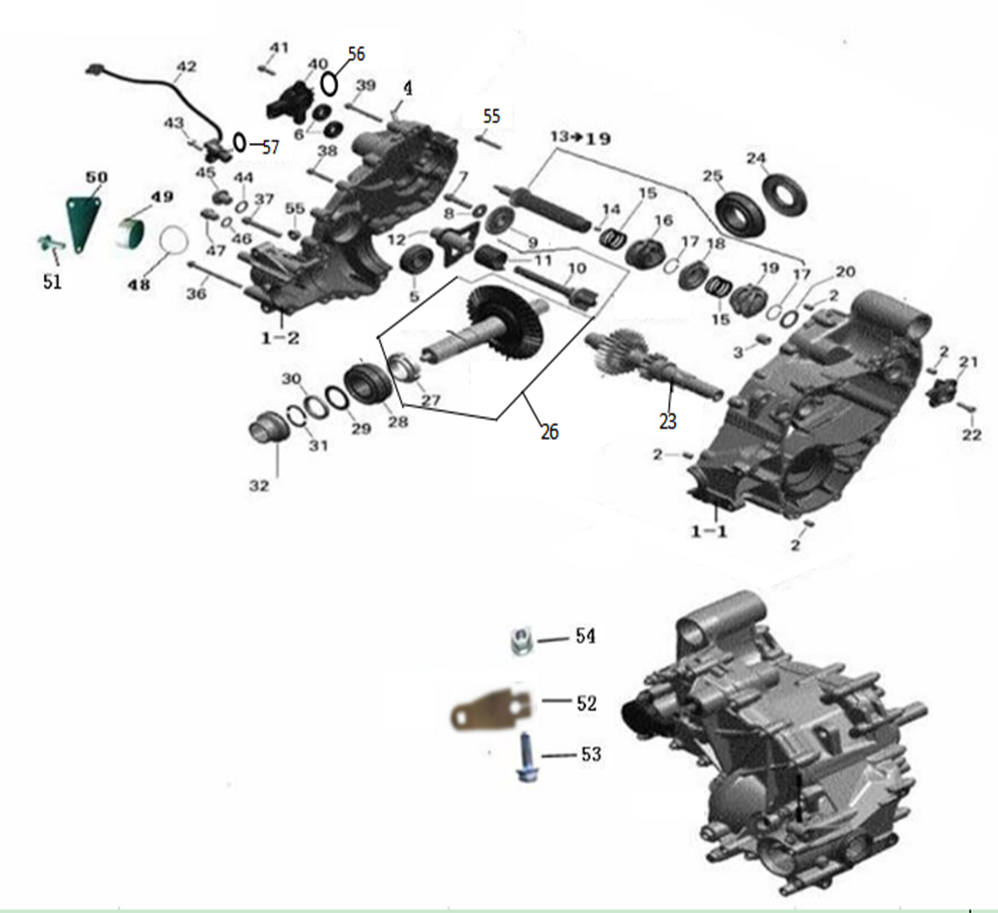

Sportcross 1000cc LT-2 GEAR BOX 1
