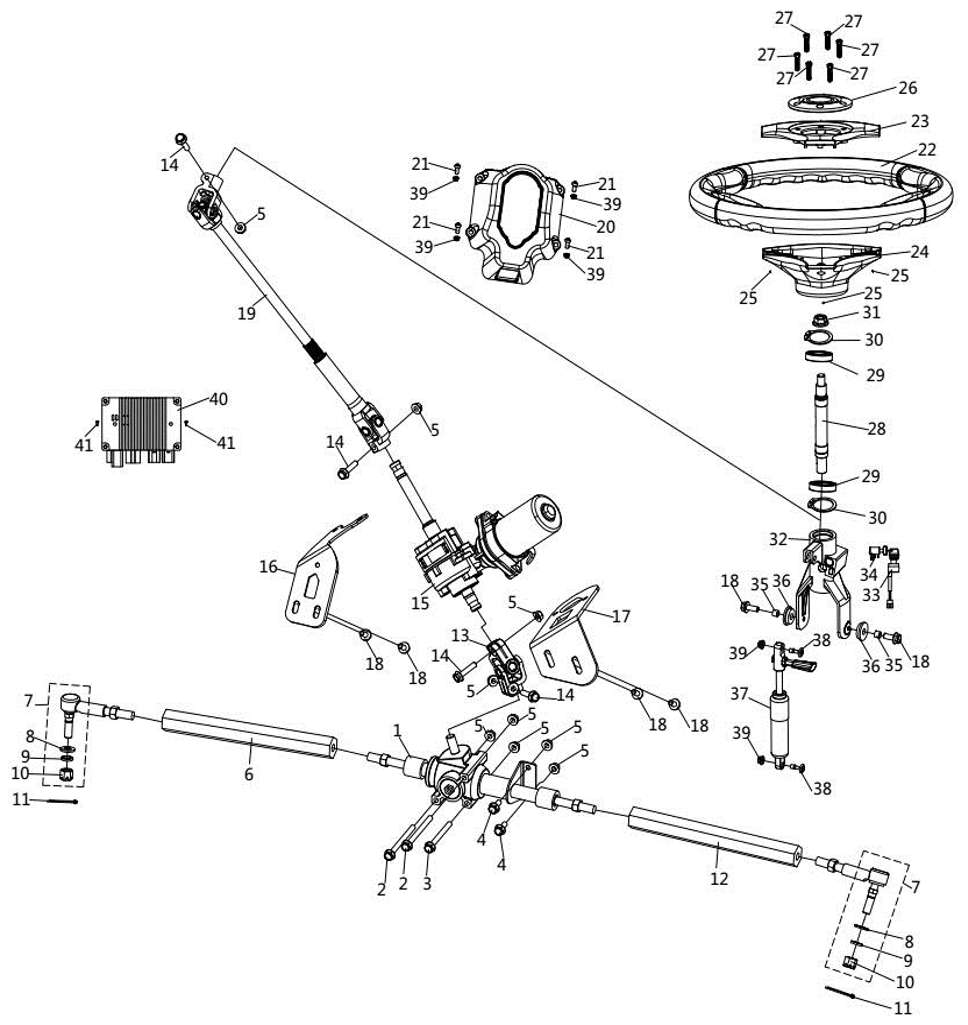

Desertcross 800cc-3 Steering system

#Ref Part Price Qty

1 1 10105100000 Redirector Assembly $51.09

2 2 01214080955 Hex Flange Bolt 8x95 $0.70

3 3 01214080805 Hex Flange Bolt 8x80 $0.70

4 4 01214080205 Hex flange bolt 8x20 $0.70

5 5 04612080025 Heagon flange locking nut 8 $0.70

6 6 10105100070 Steering Tie Rodr, LH $4.08

7 7 10905100081 Steering tie rod ball joint $4.36

8 8 06119122505 Washer 12x25x1.5 $0.70

9 9 06619121905 Spring Washer 12 $0.70

10 10 04724120025 Castle nut 12x1.25 $0.70

11 11 05011320255 Cotter Pin 3.2x25 $0.70

12 12 10905100090 Steering Tie Rodr, RH $5.77

13 13 13205270021 EPS universal joint $5.77

14 14 01224080355 Hex Flange Bolt 8x35 $0.70

15 15 14605270010 EPS Motor $279.55

16 16 14605270060 Upper bracket, EPS Motor $8.25

17 17 14605270040 Lower bracket, EPS Motor $10.46

18 18 01214080255 Hex Flange Bolt 8x25 $0.70

19 19 14605270030 Steering Shaft $40.09

20 20 14705050040 Cover, steering post $2.79

21 21 03414060164 Inner Hexalobular Socket Pan Head Screws 6x16 $0.70

22 22 13205090080 Steering wheel $26.51

23 23 13205090050 Steering Wheel Cover $1.07

24 24 13205090060 Steering Wheel Cover $1.07

25 25 03714300105 Tapping screws ST3.0x10 $0.70

26 26 13205090020 Steering Wheel Center Cap $4.12

27 27 03344060201 Hex socket head cap screws 5x20 $0.70

28 28 13205090041 Steering Shaft $10.10

29 29 09560061804 Bearing(double sealed) 61804-2RZ $2.49

30 30 07031200004 Elastic Snap Ring 20 $0.70

31 31 04622120026 Hex flange locking nut 12x1.25 $0.70

32 32 13205050000 Steering column $25.38

33 33 14609040001 Ignition Switch (Includes The Steering Wheel Switch) $15.65

34 34 03124060125 Cross slotted sunk screw 6x12 $0.70

35 35 13205050070 Steering inner bush $0.70

36 36 13205050060 Steering nylon sleeve $1.02

37 37 13208400001 Gas spring $18.48

38 38 01824060125 T bolt 6x12 $0.70

39 39 04612060025 Heagon flange locking nut 6 $0.70

40 40 13205270052 EPS Controller $147.08

41 41 01224060125 Hex Flange Bolt 6x12 $0.70

Choose Desired Part#: 1|10105100000|Redirector Assembly
Price:
Sale price$51.09

Description

Desertcross 800cc-3 Steering system
